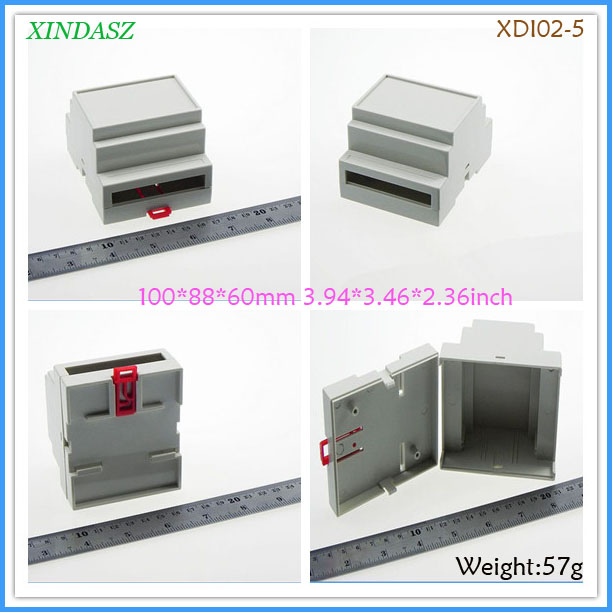

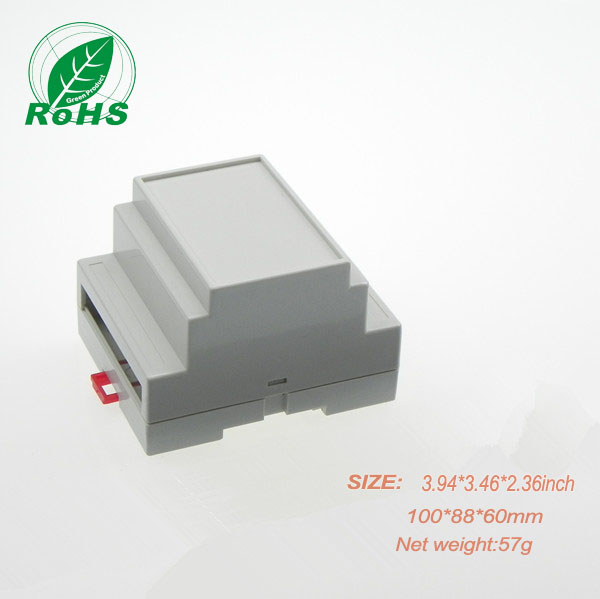

The XDI02-5 is a compact plastic enclosure designed for electrical and industrial applications. It features a snap-lock cover with a red locking tab for secure closure, and a front opening for cable entry or panel access. The internal mounting posts and screw-fixed base make it suitable for housing small PCBs, terminal blocks, and control components.
Note: Dimensions, color, cutouts, and internal layout are all customizable upon request.
Junction Box Technical Specifications
| Parameter | Specification |
|---|---|
| Model | XDI02-5 |
| Dimensions | 100 × 88 × 60 mm (3.94 × 3.46 × 2.36 inch) |
| Net Weight | 57g |
| Material | ABS Plastic (RoHS compliant) |
| Color | Gray (custom colors available) |
| Cover Type | Snap-lock cover with red locking tab |
| Front Opening | Cable entry / panel access |
| Mounting | Internal mounting posts + screw-fixed base |
| Protection | Standard indoor protection |
| Customization | Yes — length, color, cutouts, logo, silk screen, PVC label available |
Junction Box Key Features
- Compact and lightweight — only 57g
- Snap-lock cover with red locking tab for secure closure
- Front opening for cable entry or panel access
- Internal mounting posts for PCBs and terminal blocks
- Screw-fixed base for stable installation
- Durable ABS plastic construction
- RoHS compliant
Typical Applications
- Electrical junction boxes
- Industrial control and automation
- PCB protection
- Instrument enclosures
- Power supply and driver housing
- Building automation

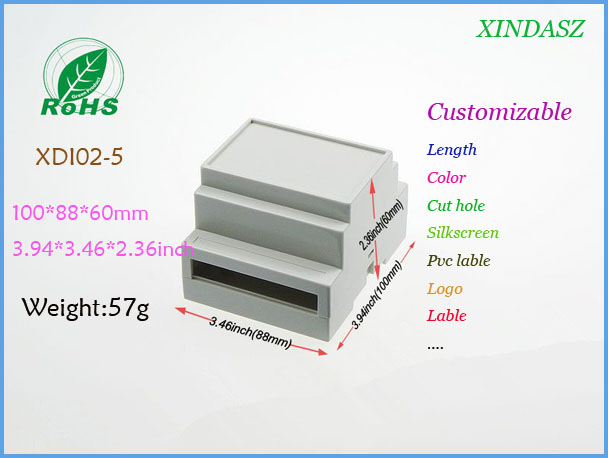

Customization Options
- Length
- Color
- Cut holes
- Silk screen printing
- PVC label
- Logo
- Custom labeling
Ordering Information
Available in volume stock. Sample orders and small-batch customization are both welcome. If you have a design drawing or physical sample, we can match it directly.
For other custom requirements, contact our online customer service or reach out via WhatsApp.
