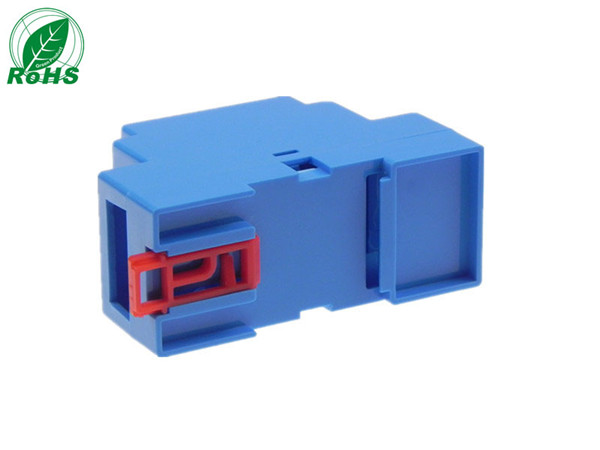

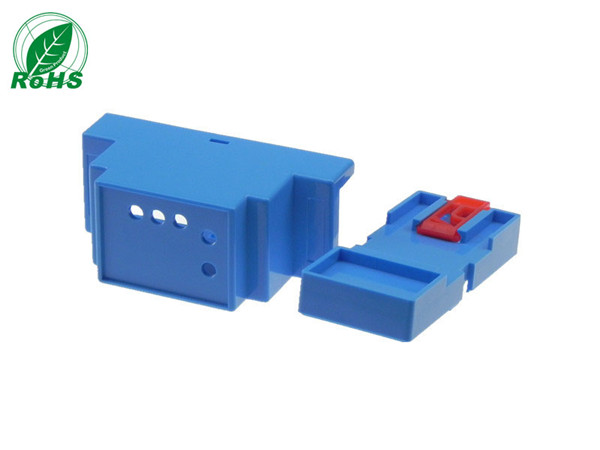

The XDI02-28 is a compact blue plastic DIN rail enclosure designed for electrical and industrial control applications. It features pre-cut circular holes on the top surface for buttons or indicators, a red locking tab for secure closure, and internal mounting posts for PCB assembly. The snap-fit design allows for quick opening and access.
Note: Dimensions, color, cutouts, and internal layout are all customizable upon request.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | XDI02-28 |
| Dimensions | 88 × 33 × 59 mm (3.46 × 1.30 × 2.32 inch) |
| Material | ABS Plastic (RoHS compliant) |
| Color | Blue body + red locking tab (custom colors available) |
| Mounting | DIN rail mount |
| Locking | Red locking tab |
| Openings | Pre-cut circular holes on top |
| Cover Type | Snap-fit cover |
| Internal Structure | PCB mounting posts |
| Protection | Standard indoor protection |
| Customization | Yes — color, cutouts, logo, size available |
Key Features
- Durable ABS plastic construction
- DIN rail mount for easy installation in control cabinets
- Pre-cut circular holes for buttons or indicators
- Red locking tab for secure closure
- Snap-fit cover for quick access
- Internal mounting posts for PCB assembly
- Compact size — 88 × 33 × 59 mm
- RoHS compliant
Typical Applications
- DIN rail electrical enclosures
- Industrial control and automation
- Power supply and driver housing
- PCB protection
- Instrument and equipment wiring
- Building automation and control panels
Customization Options
- Surface color
- Logo printing / silk screening
- Cutouts for cable glands, connectors, and switches
- Internal PCB mounting points
- Custom sizes and opening positions
Ordering Information
Available in volume stock. Sample orders and small-batch customization are both welcome. If you have a design drawing or physical sample, we can match it directly.
For other custom requirements, contact our online customer service or reach out via WhatsApp.
