FPC is a thin, bendable circuit board made by etching copper traces onto a flexible plastic base (usually polyimide or PET). Unlike rigid PCBs, FPC can fold, twist, and fit into tight spaces — making it ideal for compact and moving devices.

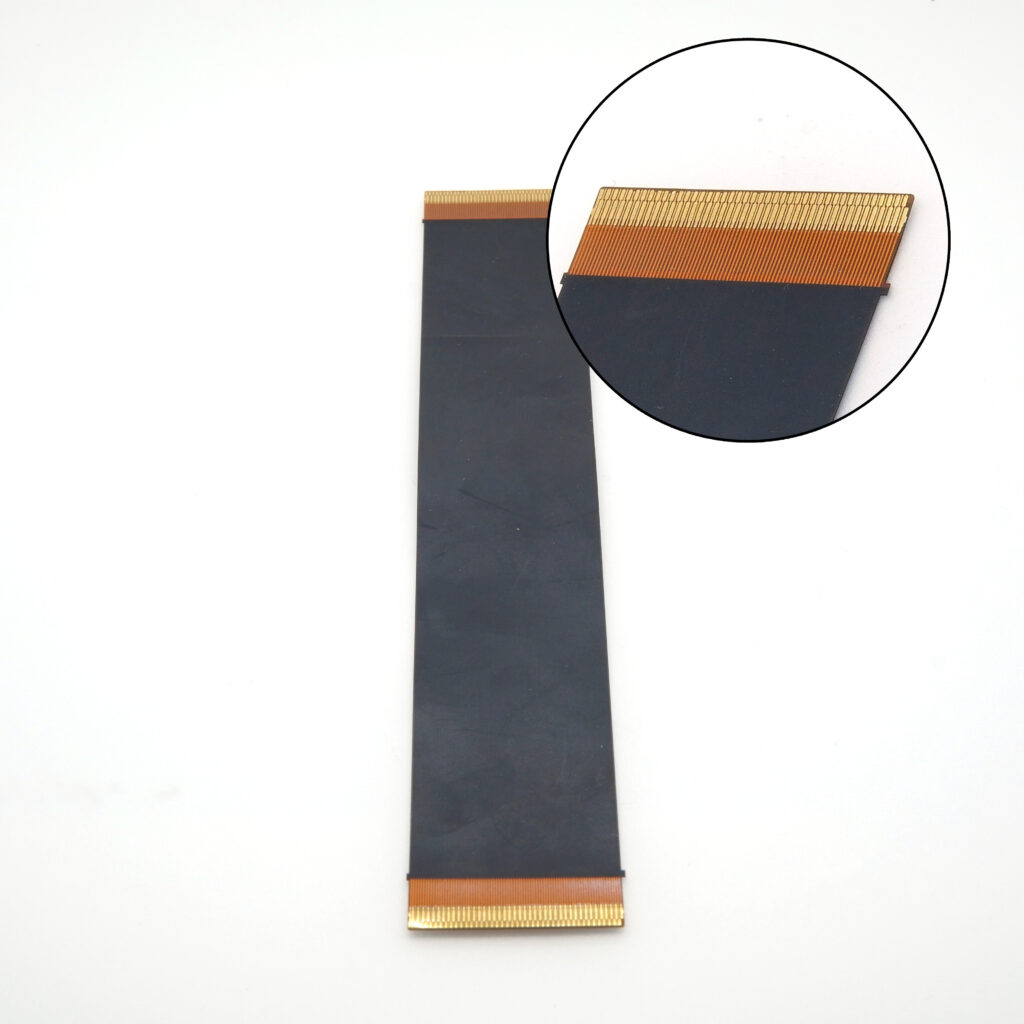

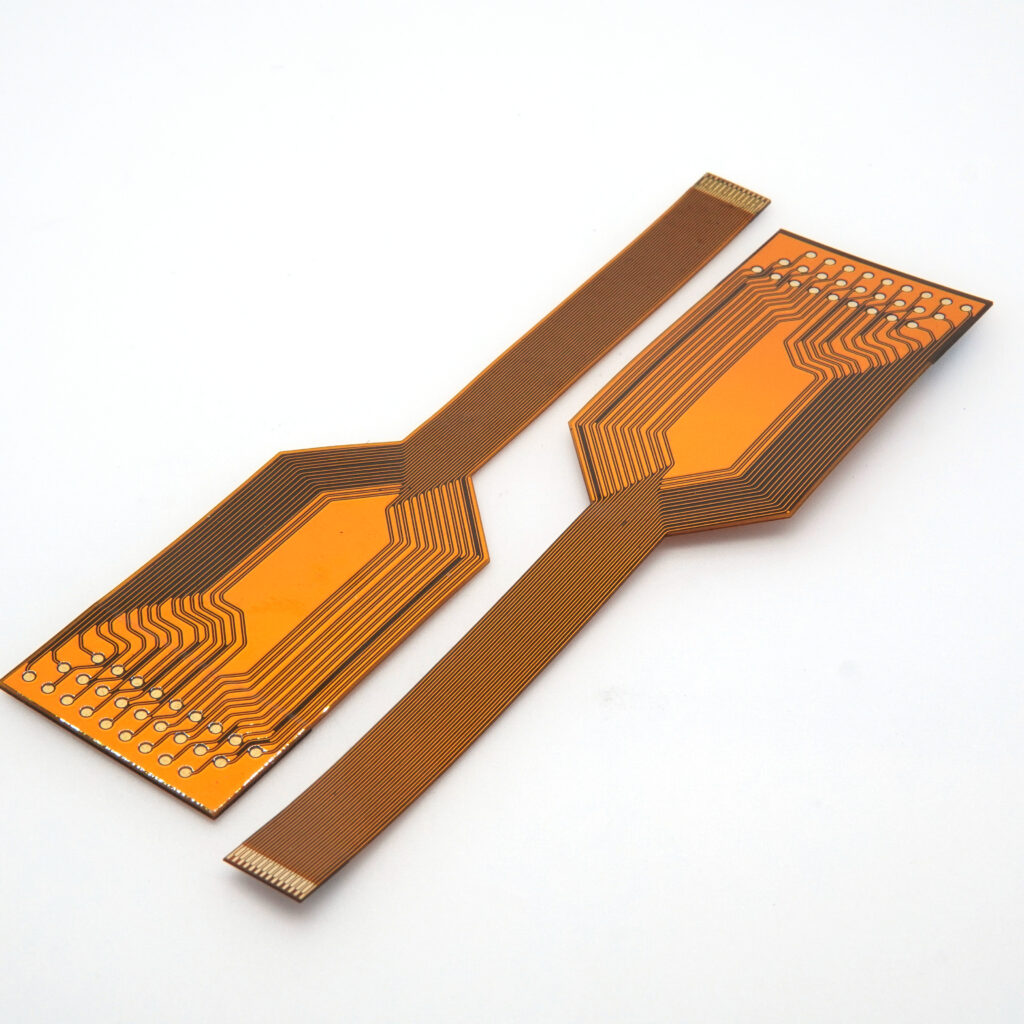

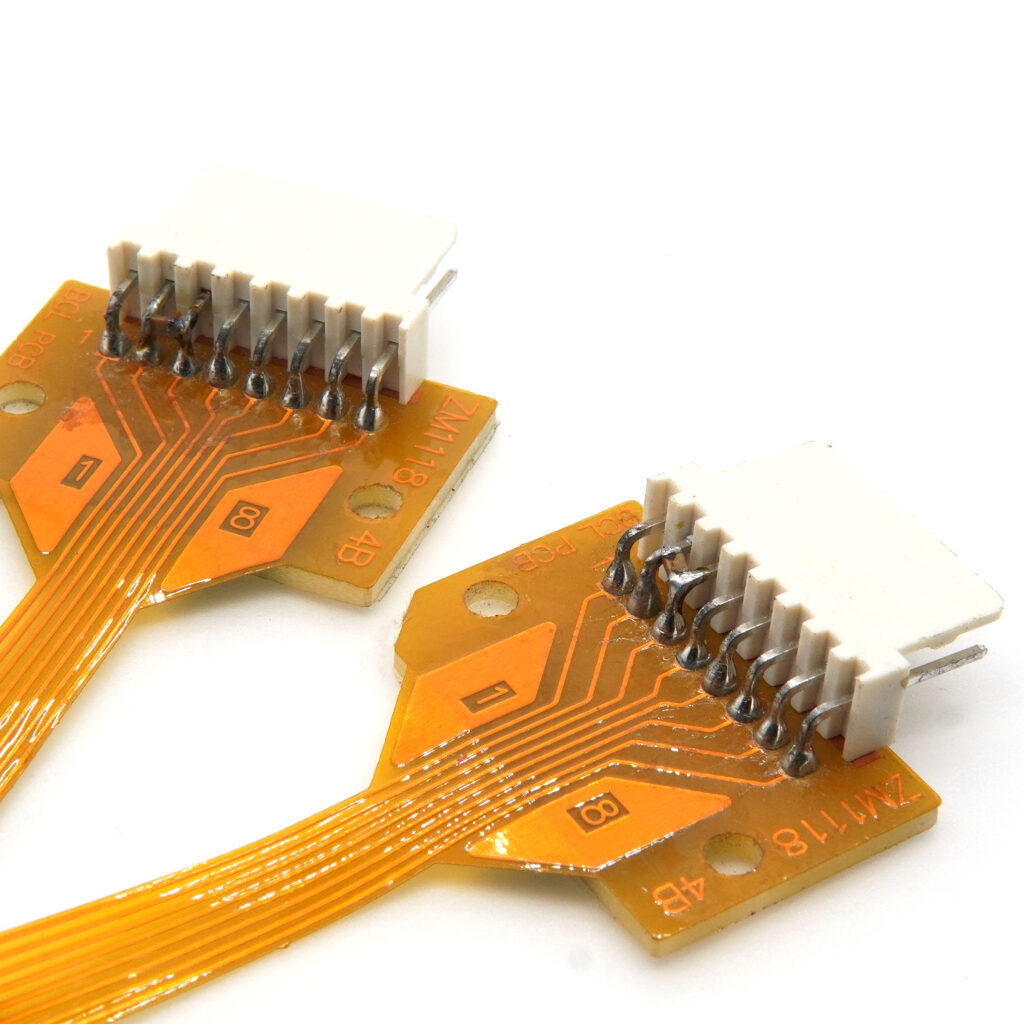

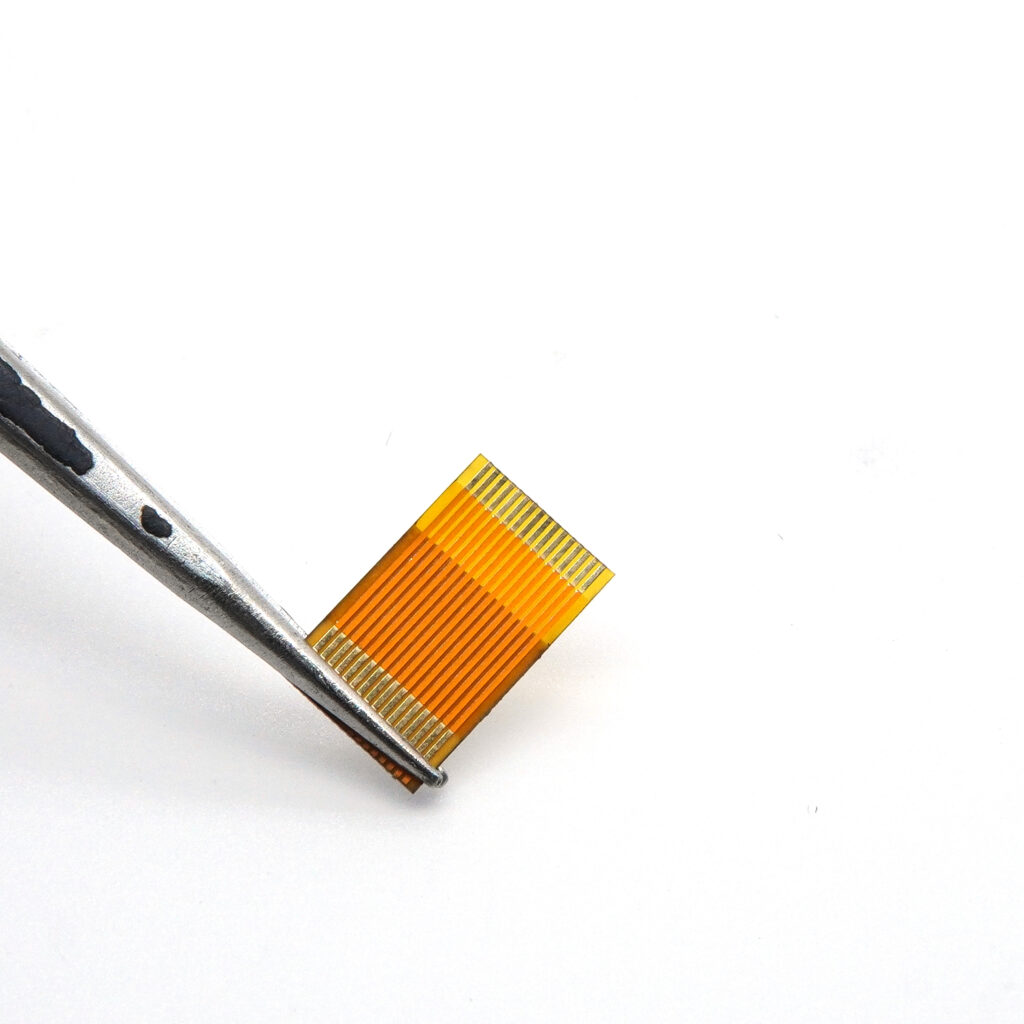

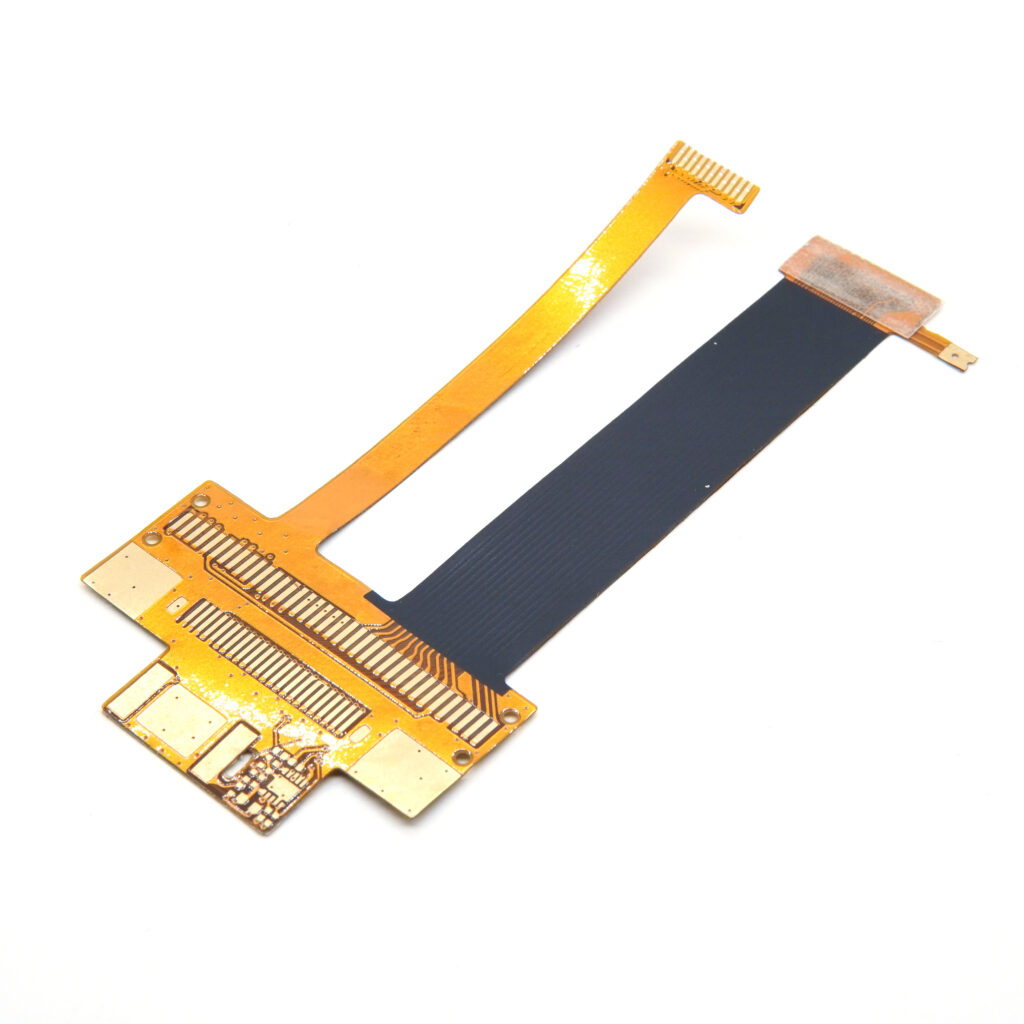

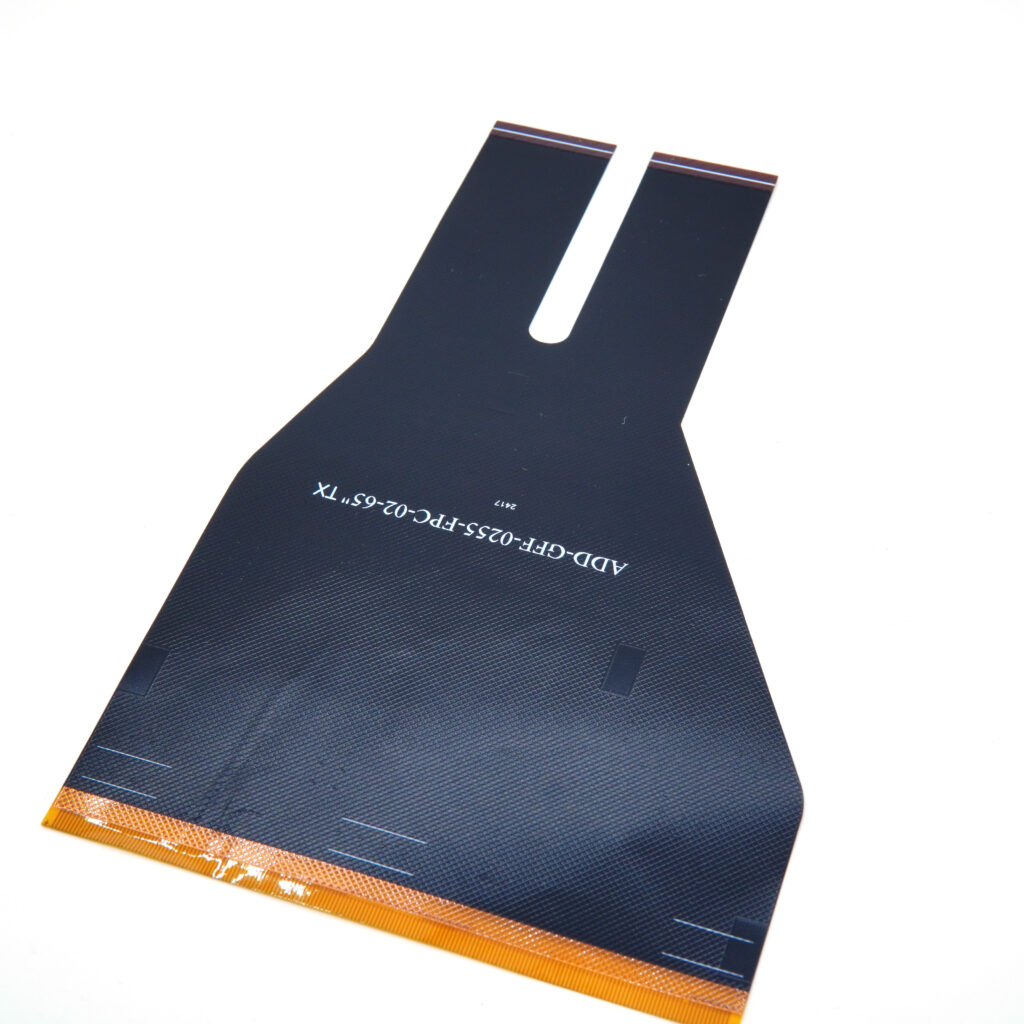

example picture:
If you want to purchase connector or cable with connector, click here
FPC — Flexible Printed Circuit
Unlike FFC (which is a flat cable), FPC is a flexible circuit board that can integrate components, complex routing, and multi-layer designs — not just signal transmission, but actual circuit functionality.
We custom-build FPC to your exact requirement — even if it’s never been made before.
| Customization Parameter | What We Can Do |
|---|---|
| Layer Count | 1 to 8+ layers (single / double / multi-layer) |
| Substrate Material | PI (Polyimide) / PET / LCP (high-frequency) |
| Circuit Pattern | Any design — standard, complex, or custom |
| Component Integration | Can mount resistors, capacitors, ICs, and other SMT components |
| Stiffener / Reinforcement | FR4 / Steel sheet / PI — added at connector areas for support |
| EMI Shielding | EMI shielding film applied for noise protection |
| Surface Finish | Immersion Gold / Tin / Silver |
| Shape & Cutout | Any shape — custom outline, notched, slotted, or drilled |
| Flexibility | Dynamic flex / static flex — bendable for moving or stationary applications |
| Connector Integration (click to know more) | FPC can be terminated with any connector type — JST, Molex, Hirose, I‑PEX, TE, or custom |
Simply put:
- FFC = flat cable for signal transmission
- FPC = flexible circuit board that can do more
If you can draw it or describe it — we can build it.
30+ years of custom FPC experience. No minimum. No limitations.
At XinDa, every FPC we produce is a direct reflection of the craftsmanship and precision that defines our entire manufacturing operation. From material selection to final testing, each step is meticulously controlled under one roof.
To truly understand the quality built into every circuit, we invite you to see the people, processes, and 30-year legacy behind our products.
