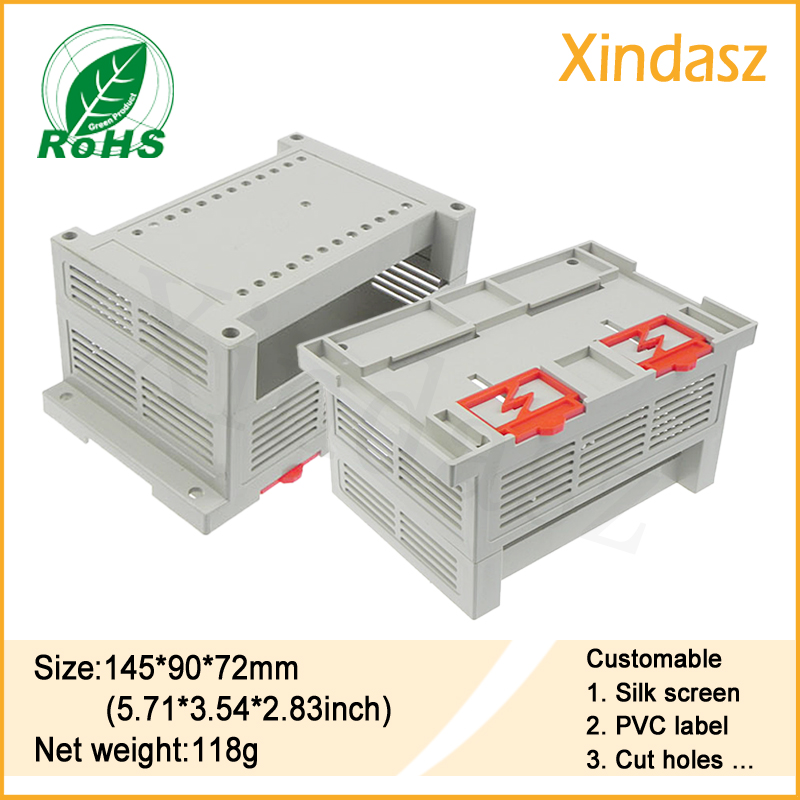

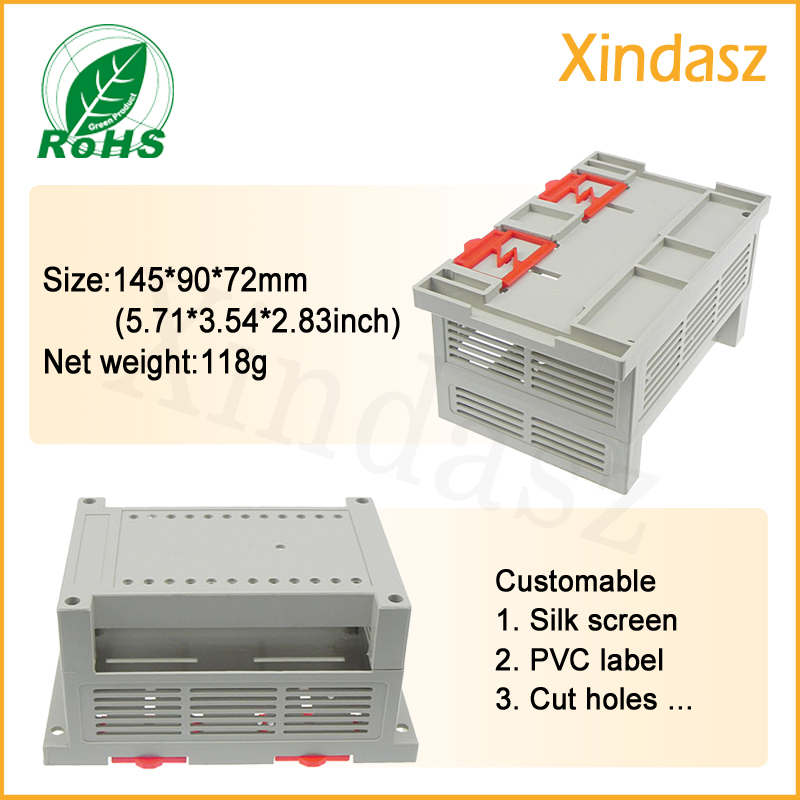

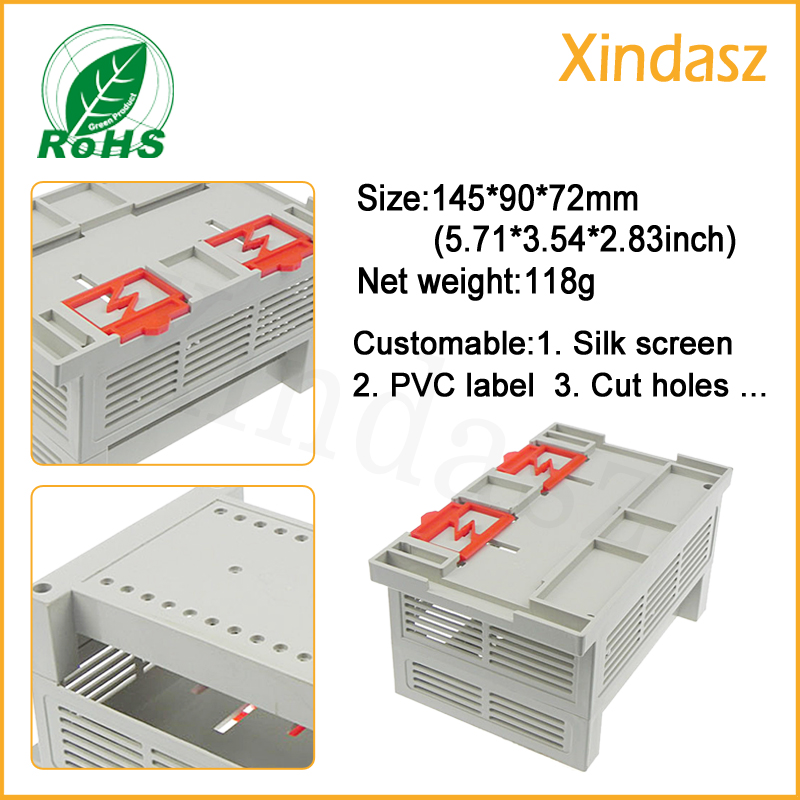

The XDI02-16 is a compact plastic DIN rail enclosure designed for electrical and industrial control applications. It features side and front ventilation slots for airflow, two red locking tabs for secure closure, and multiple pre-cut openings for connectors, wiring, and switches. The internal mounting structure and DIN rail base make it suitable for PCB assembly, terminal blocks, and control modules.
Note: Dimensions, color, cutouts, and internal layout are all customizable upon request.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | XDI02-16 |
| Dimensions | 145 × 90 × 72 mm (5.71 × 3.54 × 2.83 inch) |
| Net Weight | 118g |
| Material | ABS Plastic (RoHS compliant) |
| Color | Light Gray body + red locking tabs (custom colors available) |
| Mounting | DIN rail mount |
| Ventilation | Side and front ventilation slots |
| Locking | Two red locking tabs |
| Openings | Multiple top cutouts + side wiring openings |
| Cover Type | Screw-fixed cover |
| Protection | Limited dust and moisture protection (ventilated design) |
| Customization | Yes — silk screen, PVC label, cut holes, color |
Key Features
- Durable ABS plastic construction
- DIN rail mount for easy installation in control cabinets
- Side and front ventilation slots for heat dissipation
- Two red locking tabs for secure closure
- Multiple pre-cut openings for connectors and wiring
- Internal mounting points for PCBs and terminal blocks
- Compact and lightweight — 118g
- RoHS compliant
Important Note on Protection
This enclosure features ventilation slots and multiple openings, which allow airflow and wiring access but mean it is not fully sealed. It provides limited protection against dust and moisture — suitable for environments where airflow is needed and direct water exposure is not a concern. For fully sealed IP65/IP67 alternatives, please contact us.
Typical Applications
- DIN rail electrical enclosures
- Industrial control and automation
- Power supply and driver housing
- PCB protection with heat dissipation
- Instrument and equipment wiring
- Building automation and control panels
Customization Options
- Silk screen printing
- PVC label
- Cut holes
- Surface color
- Logo printing
- Internal PCB mounting points
- Custom sizes and opening positions
Ordering Information
Available in volume stock. Sample orders and small-batch customization are both welcome. If you have a design drawing or physical sample, we can match it directly.
For other custom requirements, contact our online customer service or reach out via WhatsApp.
