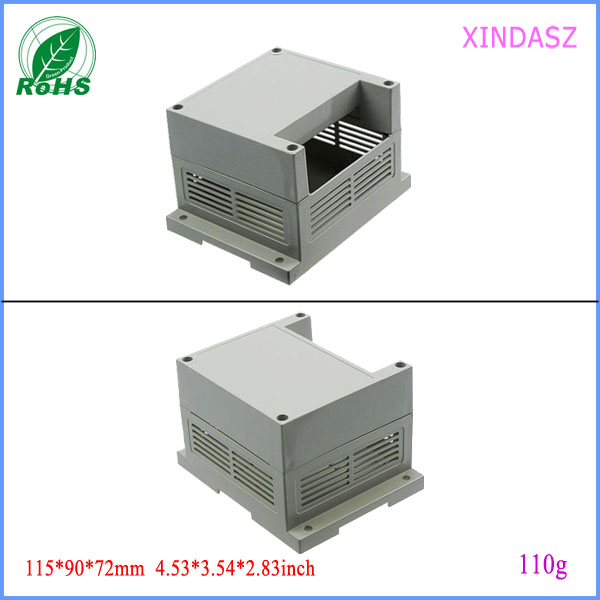

The XDI02-04 is a compact plastic enclosure designed for electrical and industrial applications. It features side ventilation slots for airflow and a bottom mounting flange for easy installation on walls or panels. The internal mounting posts and screw-fixed cover make it suitable for housing PCBs, terminal blocks, and small control components.
Note: Dimensions, color, cutouts, and internal layout are all customizable upon request.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | XDI02-04 |
| Dimensions | 115 × 90 × 72 mm (4.53 × 3.54 × 2.83 inch) |
| Net Weight | 110g |
| Material | ABS Plastic (RoHS compliant) |
| Color | Gray (custom colors available) |
| Cover Type | Screw-fixed cover |
| Ventilation | Side ventilation slots |
| Mounting | Bottom mounting flange |
| Protection | Limited dust and moisture protection (ventilated design) |
| Customization | Yes — cutouts, color, logo, internal layout available |
Key Features
- Durable ABS plastic construction
- Side ventilation slots — allows heat dissipation
- Screw-fixed cover for secure closure and easy access

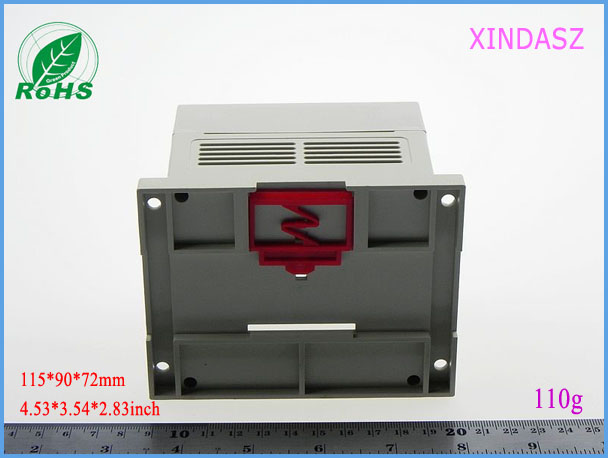

- Bottom mounting flange for wall or panel installation

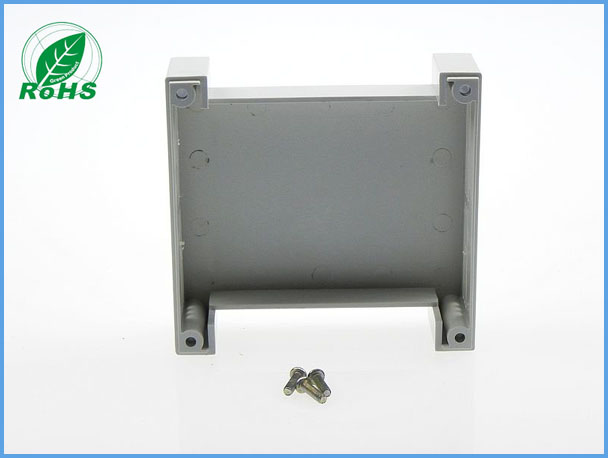

- Internal mounting posts for PCBs and terminal blocks
- RoHS compliant
Important Note on Protection
This enclosure features ventilation slots, which allow airflow but mean it is not fully sealed. It provides limited protection against dust and moisture — suitable for environments where airflow is needed and direct water exposure is not a concern. For fully sealed IP65/IP67 alternatives, please contact us.
Typical Applications
- Electrical junction boxes (sheltered)
- Industrial control and automation
- Power supply and driver housing
- PCB protection where heat dissipation is required
- Instrument enclosures
- HVAC and building automation
Customization Options
- Surface color
- Logo printing / silk screening
- Cutouts for cable glands, connectors, and switches
- Internal PCB mounting points
- Custom gasket and sealing options
Ordering Information
Available in volume stock. Sample orders and small-batch customization are both welcome. If you have a design drawing or physical sample, we can match it directly.
For other custom requirements, contact our online customer service or reach out via WhatsApp.
