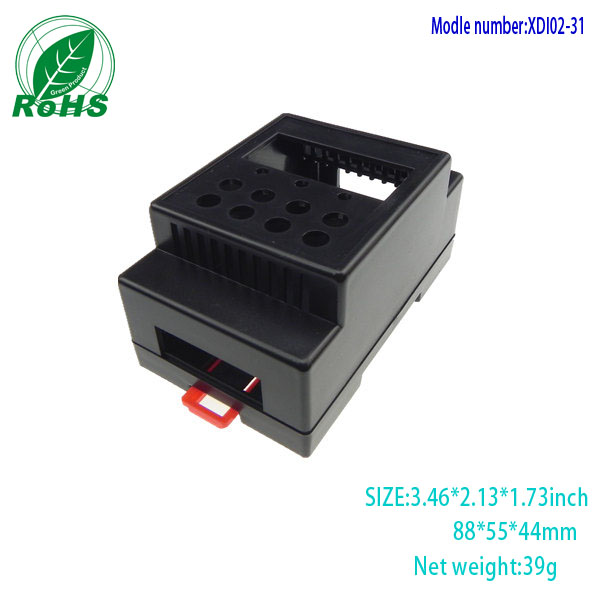

XDI02-31 — Black Plastic DIN Enclosure with Pre-Cut Holes and Red Locking

waterproof Connector

The XDI02-31 is a compact black plastic DIN rail enclosure designed for electrical and industrial control applications. It features multiple pre-cut circular holes and a rectangular opening on the top surface for buttons, connectors, or indicators, a red locking tab for secure closure, and internal mounting posts for PCB assembly.

Note: Dimensions, color, cutouts, and internal layout are all customizable upon request.

Plastic Enclosure Technical Specifications

Parameter	Specification
Model	XDI02-31

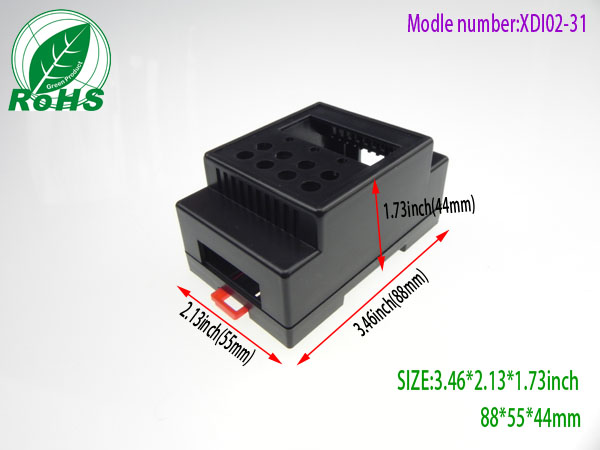

Dimensions	88 × 55 × 44 mm (3.46 × 2.13 × 1.73 inch)
Net Weight	39g
Material	ABS Plastic (RoHS compliant)
Color	Black body + red locking tab (custom colors available)
Mounting	DIN rail mount
Locking	Red locking tab
Openings	Pre-cut circular holes + rectangular opening
Cover Type	Snap-fit cover

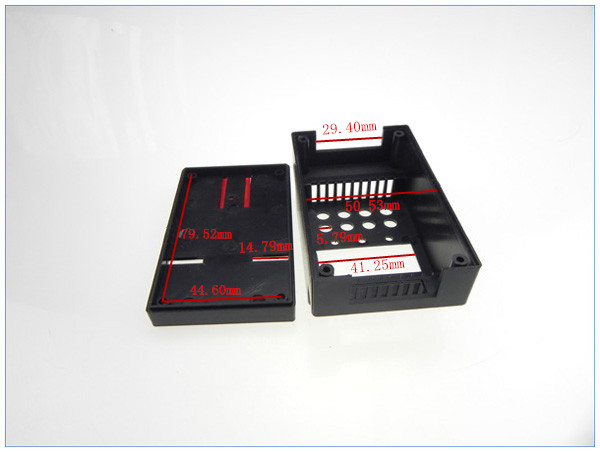

Internal Structure	PCB mounting posts
Protection	Standard indoor protection
Customization	Yes — color, cutouts, logo, size available

Plastic Enclosure Key Features

Durable ABS plastic construction
DIN rail mount for easy installation in control cabinets
Pre-cut circular holes and rectangular opening
Red locking tab for secure closure
Snap-fit cover for quick access
Internal mounting posts for PCB assembly
Compact size — 88 × 55 × 44 mm, 39g
RoHS compliant

Typical Applications

DIN rail electrical enclosures
Industrial control and automation
Power supply and driver housing
PCB protection
Instrument and equipment wiring
Building automation and control panels

Customization Options

Surface color
Logo printing / silk screening
Cutouts for cable glands, connectors, and switches
Internal PCB mounting points
Custom sizes and opening positions

Ordering Information

Available in volume stock. Sample orders and small-batch customization are both welcome. If you have a design drawing or physical sample, we can match it directly.

For other custom requirements, contact our online customer service or reach out via WhatsApp.
