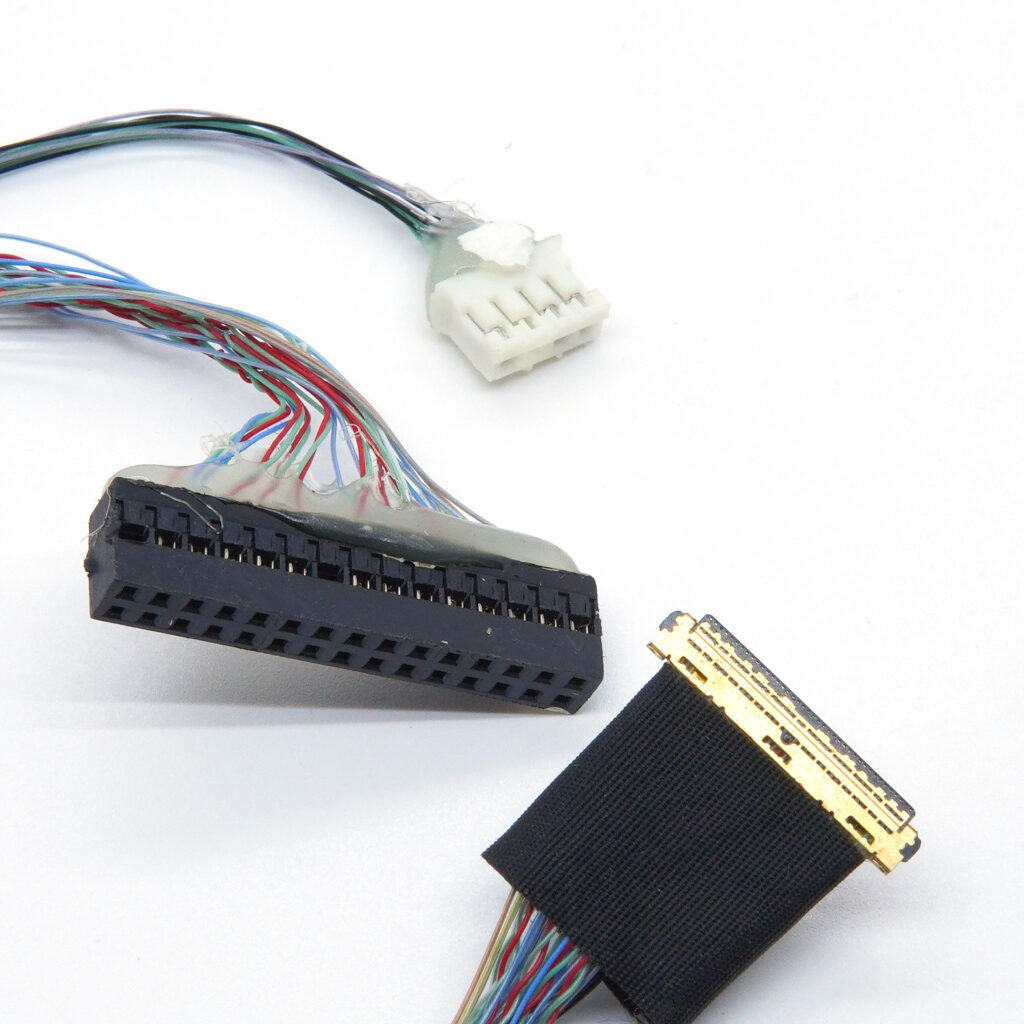

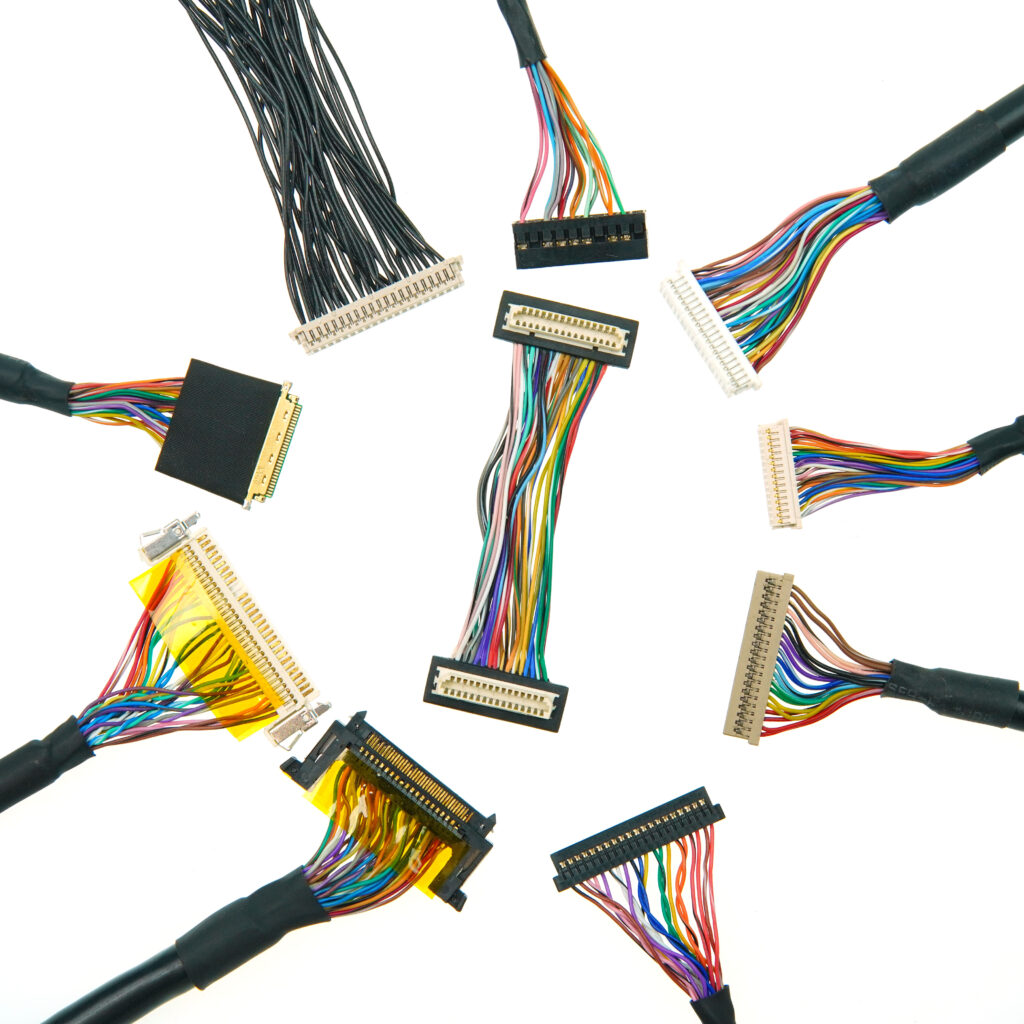

LVDS Cable Assemblies — Custom Display Interconnect Solutions
LVDS (Low-Voltage Differential Signaling) cable assemblies are high-performance interconnect solutions designed for transmitting high-speed video signals between display panels and mainboards in monitors, laptops, televisions, gaming consoles, and industrial displays. With ultra-low voltage swing (approx. 350mV) and differential pair transmission, LVDS cables deliver high data rates (up to 1.25 Gbps) with minimal EMI noise and low power consumption — making them the industry standard for display connectivity.
Typical applications:
- LCD/LED display panel connections (7″ to 85″ screens)
- Gaming consoles and VR/AR devices
- Laptop and tablet display interfaces
- Automotive navigation and infotainment displays
- Medical and industrial display equipment
- Digital signage and video wall systems
Custom Manufacturing Capabilities — Built to Your Specification
| Parameter | What We Can Do |
|---|---|
| Pin Configuration Definition | Fully customizable — pin assignment, signal mapping, and circuit definition per your display panel or mainboard requirement. Even if no existing standard exists, we can define it from scratch |
| Pin Count | 30pin, 41pin, 51pin, or custom configurations |
| Pitch | 0.3mm / 0.4mm / 0.5mm / 0.8mm / 1.0mm / 1.25mm / 2.0mm / 2.54mm |
| Cable Type | Micro-coaxial (36-46 AWG), discrete wire, or hybrid construction |
| Impedance Control & Matching | Custom impedance matching (e.g., 100Ω differential ±10%) — we fine-tune impedance to match your specific panel and mainboard pair for optimal signal integrity |
| Signal Pair Assignment | Differential pair routing and twist pitch customized per your LVDS channel mapping |
| Connector Options | JST, Molex, AMP, HRS (Hirose), JAE, I-PEX, KET, or custom termination |
| Shielding Configuration | Unshielded, single shielded, double shielded, or triple shielded with tinned copper braid |
| Length | Custom length as per your requirement |
| Terminal Material | Tinned copper wire |
| Voltage Rating | Up to 300V DC |
| Temperature Range | -30°C to +85°C |
| Compliance | RoHS compliant |
This list is for reference. If you have other requirements, inquire with us via WhatsApp, email, or online chat.
What We Customize:
- Definition: Pin assignment, signal mapping, and circuit routing — we can design the entire electrical definition from scratch based on your display and mainboard specs
- Impedance: Custom impedance matching to your specific panel and mainboard pair
- Physical: Length, routing, connector type, orientation (90°/180°), and termination style
- EMI Protection: Shielding level, ferrite core, or magnetic ring for noise suppression in large displays
- Strain Relief: Overmolding and cable reinforcement for durability in dynamic applications
Simply put:
LVDS is the technology that makes high-resolution displays possible — clean signal, low noise, long distance. We don’t just make the cable; we define the connection — from pin assignments to impedance matching — so you get a solution that works the first time, every time.
If you can draw it or describe it — we can build it.
30+ years of custom cable assembly experience. No minimum. No limitations.
