XDI02-39— Light Grey Plastic DIN Rail Enclosure with Ventilation and Dual Locking Tabs

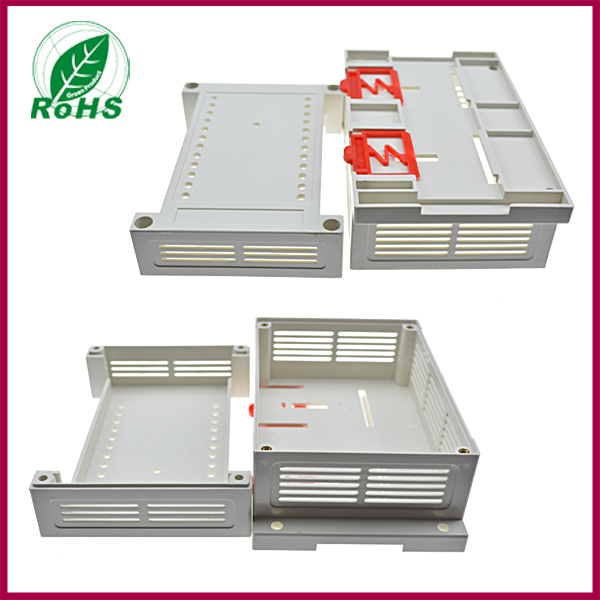

The 22-16 is a large light grey plastic DIN rail enclosure designed for electrical and industrial control applications. It features side ventilation slots for airflow, two red locking tabs for secure closure, and pre-cut openings on the top and sides for connectors and wiring. The internal mounting structure and DIN rail base make it suitable for PCB assembly, terminal blocks, and control modules.

Customizable options: Length, color, cut hole, silkscreen.

Technical Specifications

Key Features

• Durable ABS plastic construction
• DIN rail mount for easy installation in control cabinets
• Side ventilation slots for heat dissipation
• Two red locking tabs for secure closure
• Pre-cut openings for connectors and wiring
• Internal mounting points for PCBs and terminal blocks

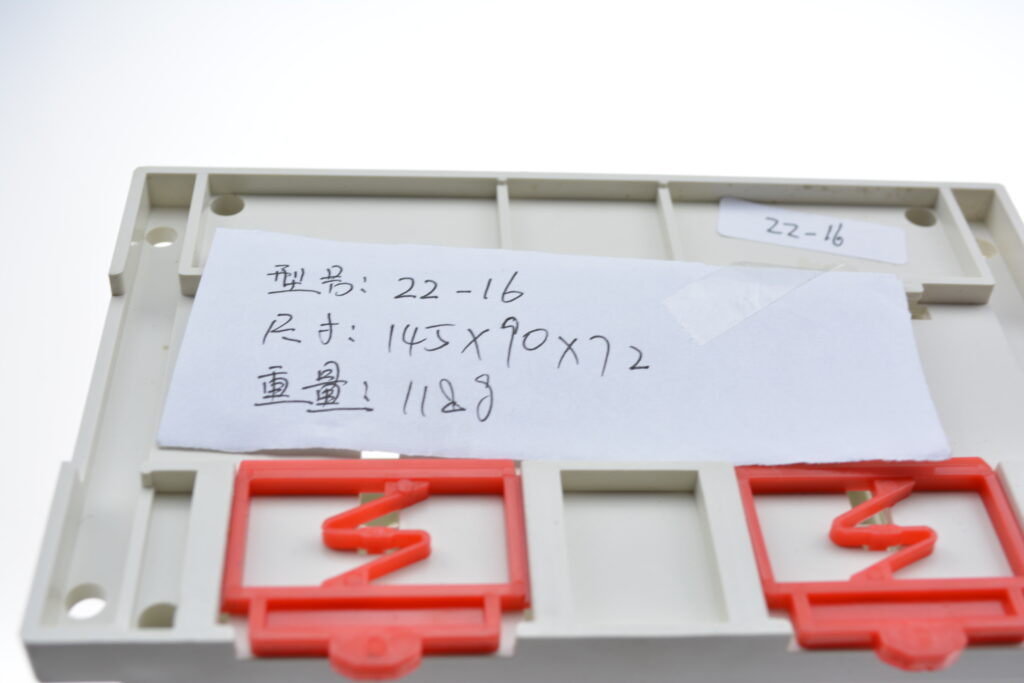

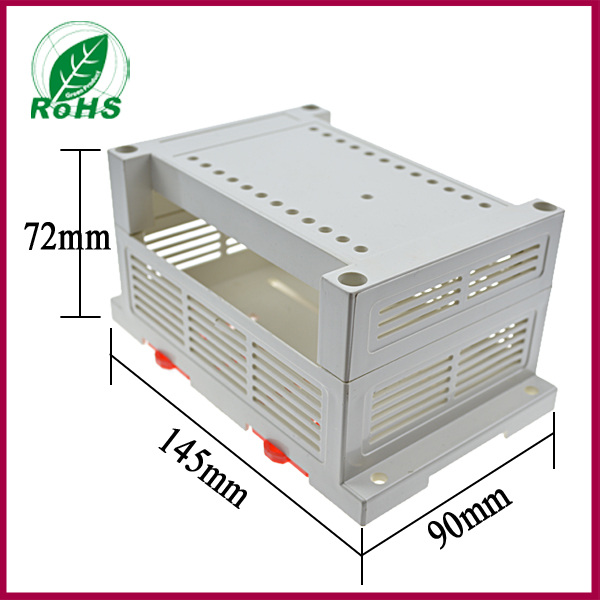

• Large size — 145 × 90 × 72 mm, 118g
• RoHS compliant

Important Note on Protection

This enclosure features ventilation slots and openings, which allow airflow and wiring access but mean it is not fully sealed. It provides limited protection against dust and moisture — suitable for environments where airflow is needed and direct water exposure is not a concern. For fully sealed IP65/IP67 alternatives, please contact us.

Typical Applications

• DIN rail electrical enclosures
• Industrial control and automation
• Power supply and driver housing
• PCB protection with heat dissipation
• Instrument and equipment wiring
• Building automation and control panels

Customization Options

• Length
• Color
• Cut hole
• Silkscreen

Ordering Information

Available in volume stock. Sample orders and small-batch customization are both welcome. If you have a design drawing or physical sample, we can match it directly.

For other custom requirements, contact our online customer service or reach out via WhatsApp.
