The XDI02-30 is a large white plastic DIN rail enclosure designed for electrical and industrial control applications. It features a transparent window on the top surface for visual inspection, multiple pre-cut circular holes for buttons or indicators, a red locking tab for secure closure, and internal mounting posts for PCB assembly.
Note: Dimensions, color, cutouts, and internal layout are all customizable upon request.
Plastic Enclosure Technical Specifications
| Parameter | Specification |
|---|---|
| Model | XDI02-30 |

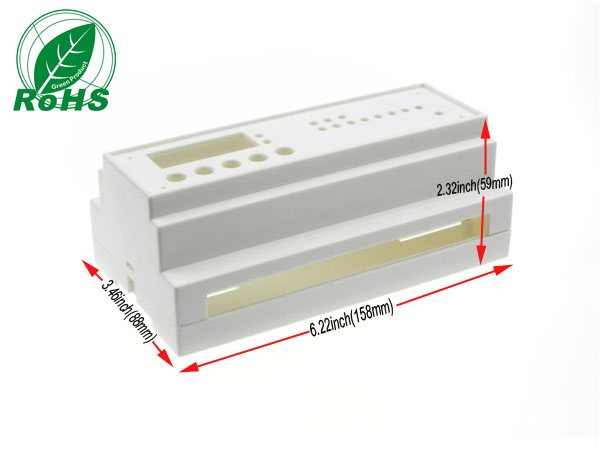

| Dimensions | 88 × 158 × 59 mm (3.46 × 6.22 × 2.32 inch) |
| Net Weight | 113g |
| Material | ABS Plastic (RoHS compliant) |
| Color | White body + red locking tab (custom colors available) |
| Mounting | DIN rail mount |

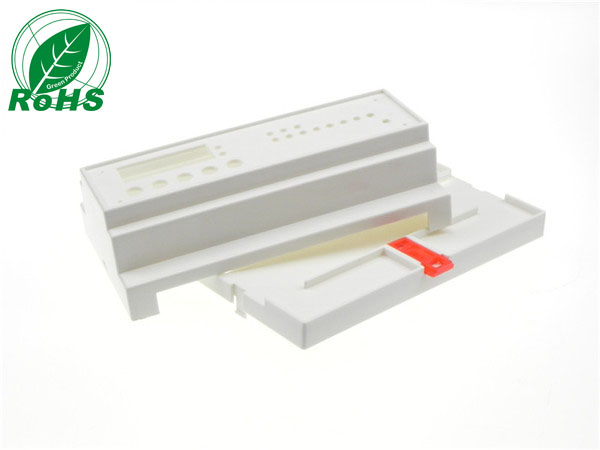

| Locking | Red locking tab |
| Window | Transparent window on top |
| Openings | Pre-cut circular holes for buttons/indicators |
| Cover Type | Snap-fit cover |
| Internal Structure | PCB mounting posts |
| Protection | Standard indoor protection |
| Customization | Yes — color, cutouts, logo, size available |
Key Features
- Durable ABS plastic construction
- DIN rail mount for easy installation in control cabinets
- Transparent window for visual inspection
- Pre-cut circular holes for buttons or indicators
- Red locking tab for secure closure
- Snap-fit cover for quick access
- Internal mounting posts for PCB assembly
- Large size — 88 × 158 × 59 mm, 113g
- RoHS compliant
Typical Applications
- DIN rail electrical enclosures
- Industrial control and automation
- Power supply and driver housing
- PCB protection with visual access
- Instrument and equipment wiring
- Building automation and control panels
Customization Options
- Surface color
- Logo printing / silk screening
- Cutouts for cable glands, connectors, and switches
- Internal PCB mounting points
- Custom sizes and opening positions
Ordering Information
Available in volume stock. Sample orders and small-batch customization are both welcome. If you have a design drawing or physical sample, we can match it directly.
For other custom requirements, contact our online customer service or reach out via WhatsApp
