Coils of Wire— Custom-Built to Your Spec Coils are essential components in many electronic and electromechanical systems — used for filtering, tuning, power conversion, sensing, and signal coupling. But one size rarely fits all.
We design and manufacture custom coils tailored to your exact application requirements. Whether you need a specific inductance value, wire gauge, core material, or physical form factor — we build it.
What We Can Customize Parameter Options Inductance Any value within your required tolerance Wire Gauge 12 AWG to 50 AWG — or custom Core Material Ferrite / Iron Powder / Litz / Air Core / Custom Winding Style Single layer / Multi-layer / Toroidal / Bobbin / Custom shape Termination Lead wires / Pins / SMD pads / Custom connectors Coil Form Any custom shape or size — round, rectangular, or custom geometry Coating / Encapsulation Epoxy / Parylene / Varnish / Silicone / Custom Operating Temperature Up to 200°C (depending on materials) Mounting Type Through-hole / Surface mount / Chassis mount / Custom
Common Applications for Custom Coils of wire Power supply filtering RF tuning and matching EMI suppression Signal coupling and isolation Inductive sensing Transformers and chokes Medical devices Automotive electronics Industrial automation Drone and UAV systems Custom test equipment Why Choose Us for Custom Coils? Fully custom: Inductance, wire, core, shape, termination — any parameter adjustableDesign support: Our engineers can help you select the right materials and configuration for your applicationPrototype to production: Quick-turn samples for testing, then scale to volumeQuality: 100% electrical testing before shipmentExperience: 30+ years in custom electronic component manufacturingHow It Works Step What We Do 1. You Tell Us Inductance value, current rating, space constraints, and any specific requirements 2. We Recommend Our engineering team suggests the best core, wire, and winding approach for your application 3. We Build Samples are produced and tested to your spec 4. We Ship Approved samples go to full production — with consistent quality and reliable lead times

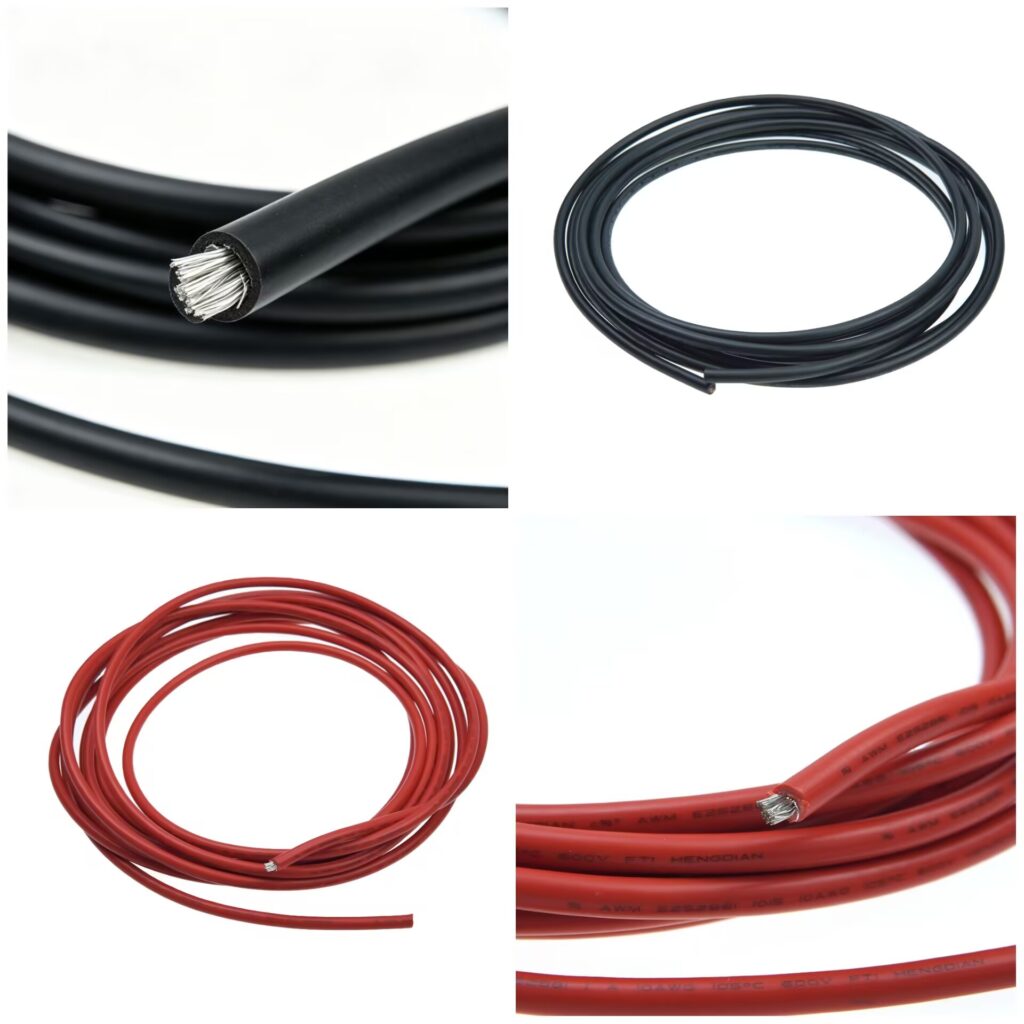

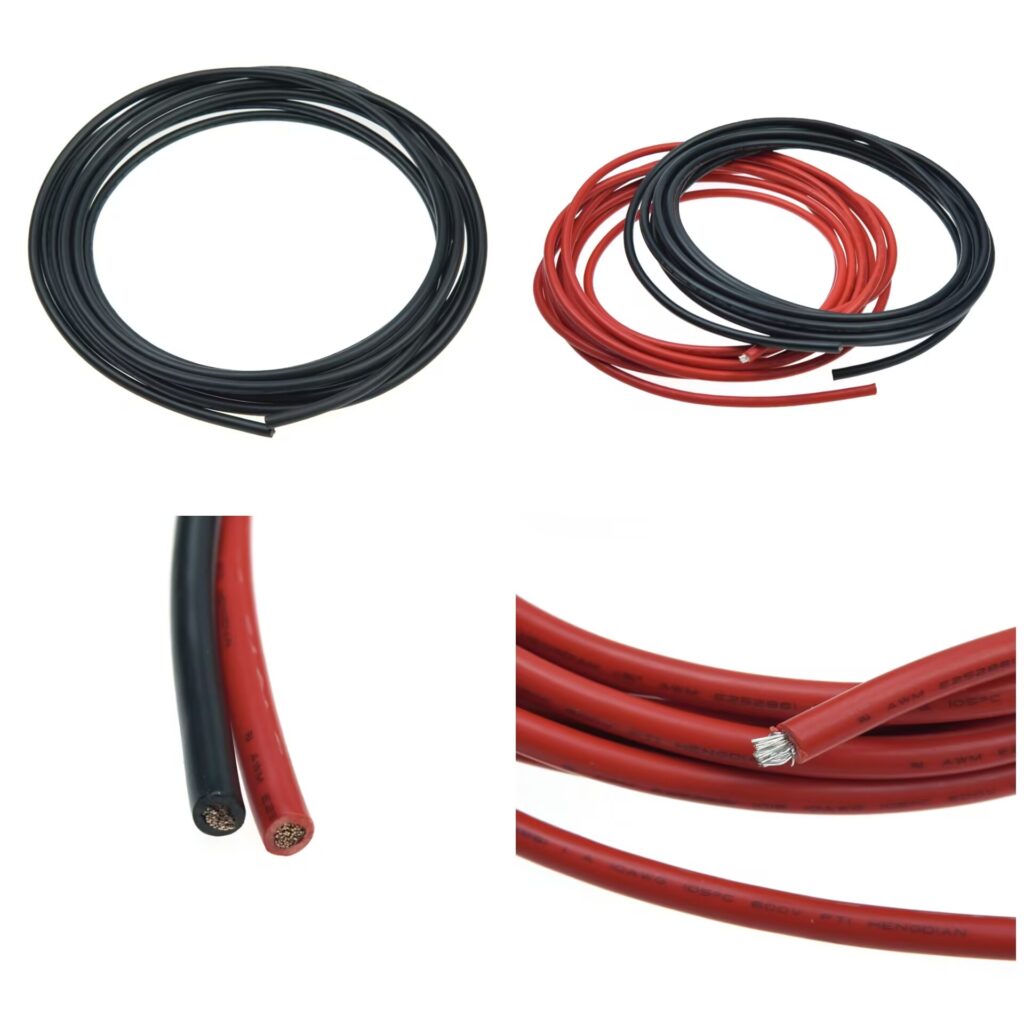

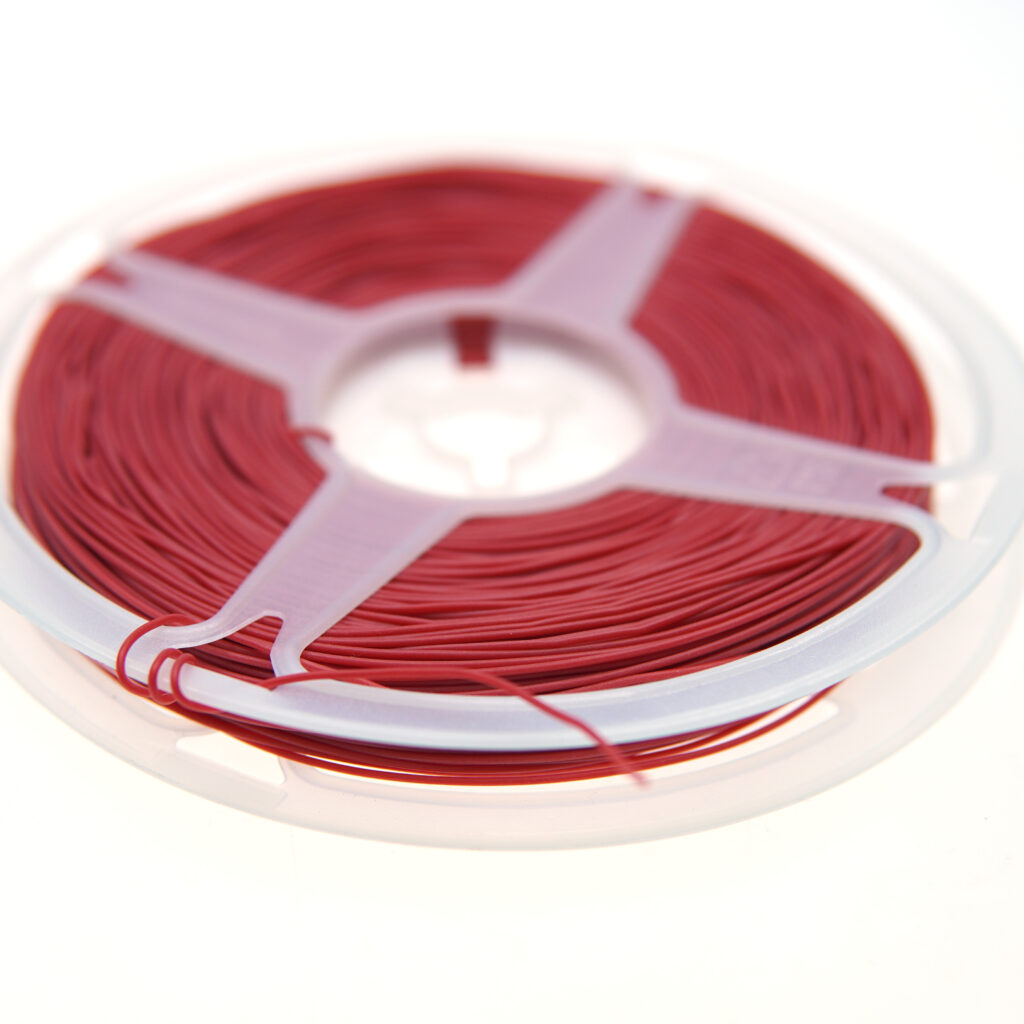

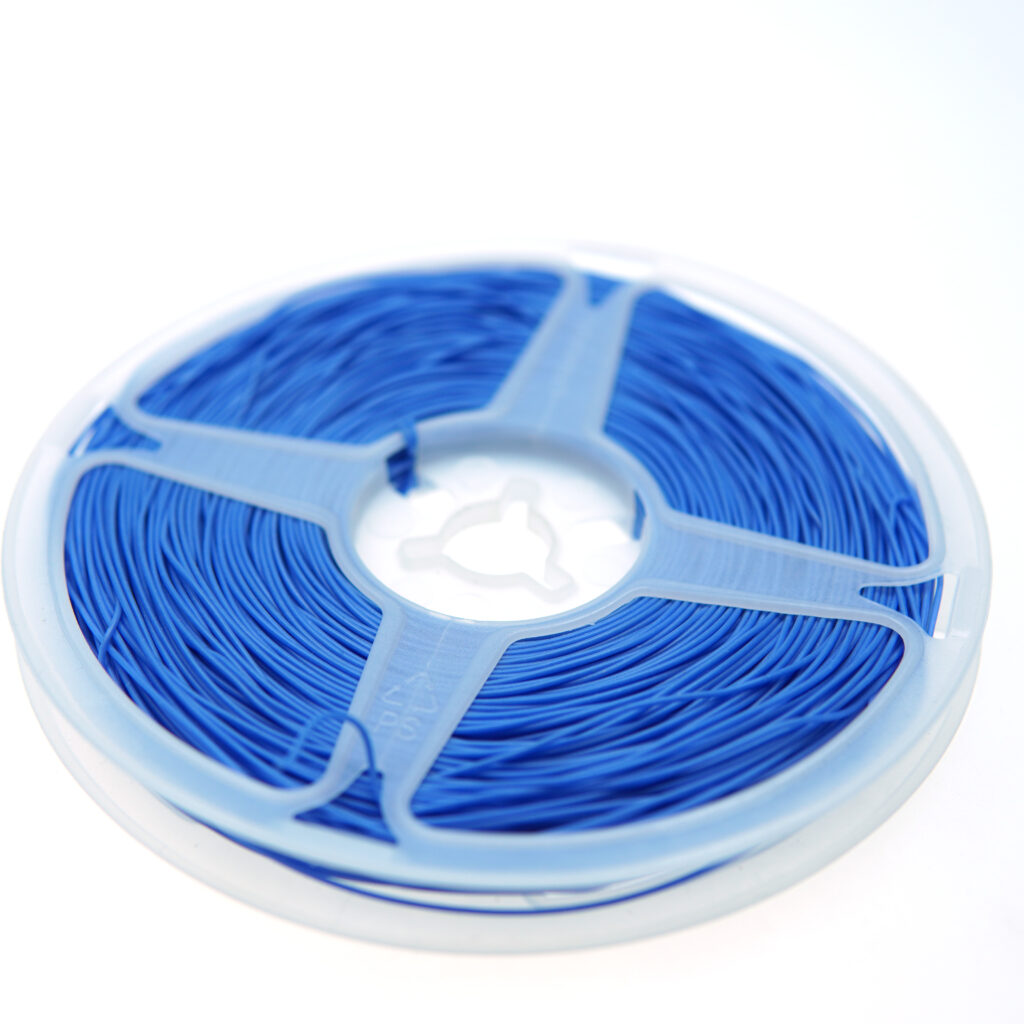

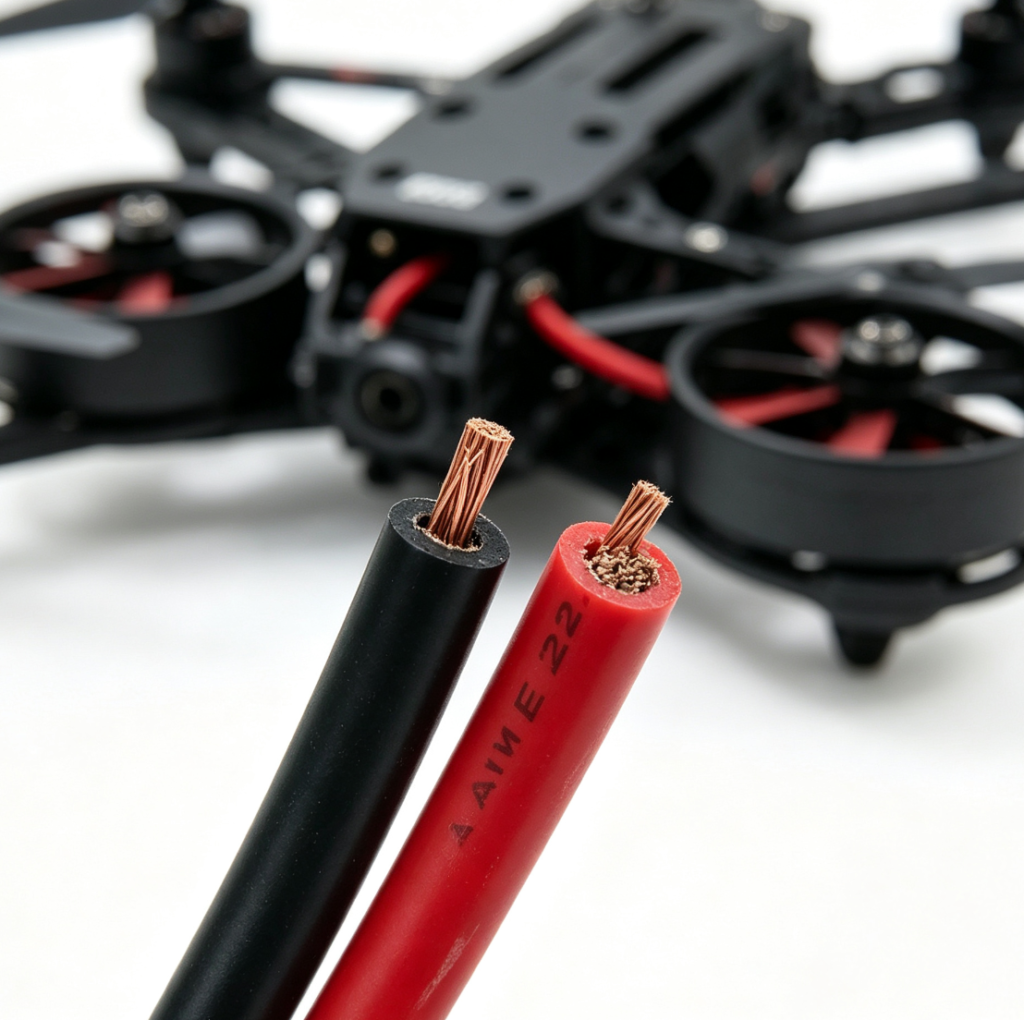

Electronic Wire — Specifications Conductor & Insulation Options Parameter Options Wire Gauge (AWG) 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30 Conductor Material Bare Copper / Tinned Copper / Silver-Plated Copper Conductor Type Solid / Stranded (Flexible) Insulation Material PVC / Silicone / XLPE / PTFE / Teflon Rated Voltage 300V / 600V / 1000V Temperature Range -40°C to +105°C (PVC) / -60°C to +200°C (Silicone) / -65°C to +250°C (PTFE) Flammability Rating VW-1 / FT1 / UL94 V-0
UL Standards Reference UL Style AWG Range Voltage Temp Rating Insulation Typical Application UL 1007 30 – 16 300V 80°C PVC Internal wiring, general hook-up UL 1015 26 – 10 600V 105°C PVC Appliances, control panels, power supply UL 1061 30 – 18 300V 80°C PVC Thin-wall, compact device wiring UL 1430 28 – 16 300V 105°C PVC High-temp internal wiring UL 1571 32 – 18 300V 80°C PVC Electronic equipment, thin profile UL 1672 26 – 12 300V 105°C PVC Power supply, control cabinets UL 3075 26 – 10 600V 125°C XLPE Automotive, high-temp engine bay wiring UL 3173 26 – 14 600V 125°C XLPE High-temp, high-voltage applications UL 3271 26 – 10 600V 125°C XLPE Motor lead wires, high-temp industrial UL 3386 28 – 10 300V 150°C Silicone High-heat applications, lighting UL 3398 26 – 10 600V 150°C Silicone High-temp, high-voltage industrial UL 3435 28 – 10 600V 150°C XLPE / Silicone High-temp, high-flex applications
Common Conductor Configurations AWG Stranding ( strands / OD ) Conductor OD (approx) Insulation Thickness Finished OD (approx) 10 AWG 105/0.25mm 3.8mm 0.76mm (PVC) / 0.5mm (Silicone) 5.4mm – 6.2mm 12 AWG 65/0.25mm 3.0mm 0.76mm (PVC) / 0.5mm (Silicone) 4.6mm – 5.4mm 14 AWG 41/0.25mm 2.4mm 0.76mm (PVC) / 0.4mm (Silicone) 4.0mm – 4.6mm 16 AWG 26/0.25mm 1.8mm 0.76mm (PVC) / 0.4mm (Silicone) 3.2mm – 3.8mm 18 AWG 16/0.25mm 1.2mm 0.76mm (PVC) / 0.3mm (Silicone) 2.8mm – 3.2mm 20 AWG 7/0.32mm 1.0mm 0.6mm (PVC) / 0.3mm (Silicone) 2.2mm – 2.8mm 22 AWG 7/0.25mm 0.8mm 0.6mm (PVC) / 0.3mm (Silicone) 2.0mm – 2.4mm 24 AWG 7/0.20mm 0.6mm 0.5mm (PVC) / 0.3mm (Silicone) 1.6mm – 2.0mm 26 AWG 7/0.16mm 0.5mm 0.5mm (PVC) / 0.3mm (Silicone) 1.5mm – 1.8mm 28 AWG 7/0.12mm 0.4mm 0.4mm (PVC) / 0.3mm (Silicone) 1.2mm – 1.5mm 30 AWG 7/0.10mm 0.3mm 0.4mm (PVC) / 0.3mm (Silicone) 1.0mm – 1.3mm
Finished OD may vary depending on insulation material and thickness. Custom specifications available upon request.

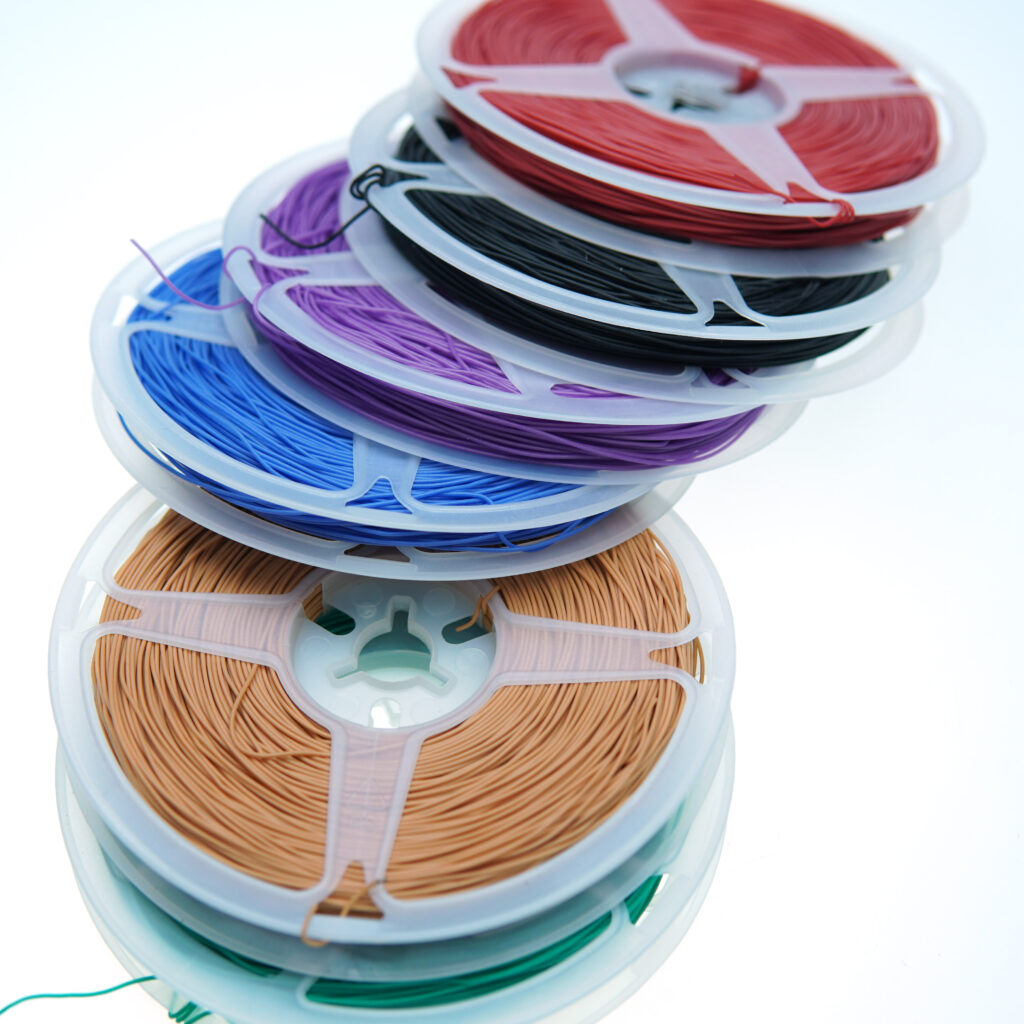

Color Options Standard Colors Custom Options Black, Red, White, Yellow, Green, Blue, Brown, Orange, Gray, Violet Striped / Dual-Color / Custom RAL Code
Customization Services Service Description Custom Length Any length, precision cut to your requirement Stripping & Tinning Both ends stripped and tinned per spec Wire Marking Print text / numbers / logos on wire surface Connector Termination Pre-assembled with terminals, crimps, or connectors Color & Packaging Custom colors and packaging available Sample Service Samples provided for approval before mass production

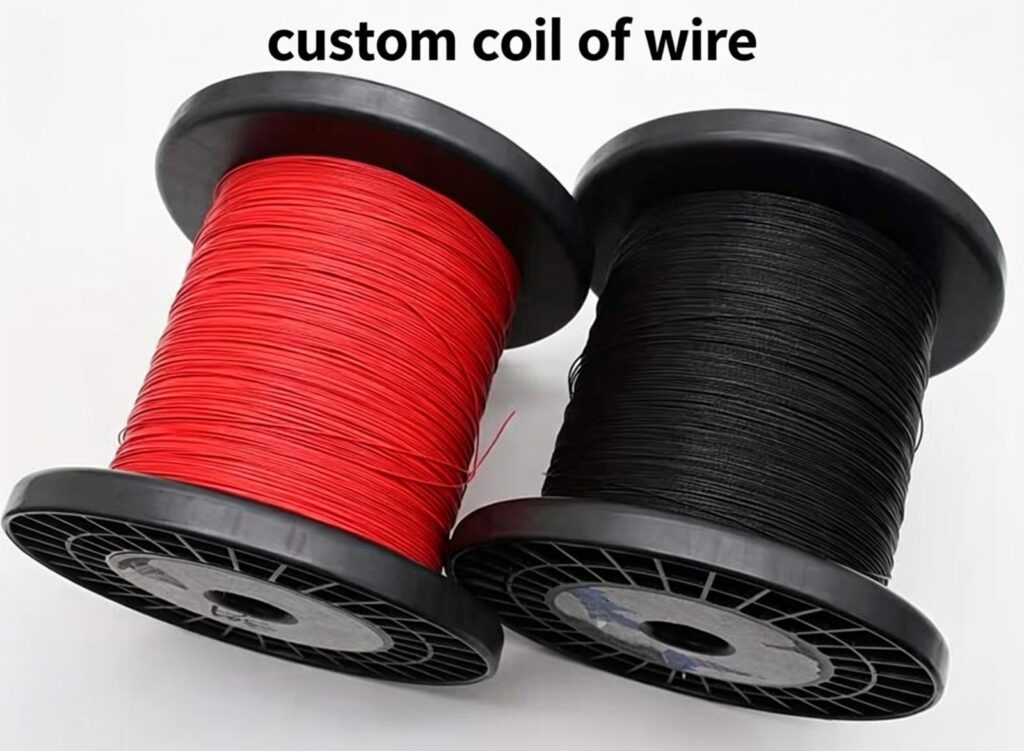

Industry Applications Internal wiring of control cabinets and panels Power supply connections in industrial equipment Automotive and heavy machinery wiring Medical device internal connections LED lighting systems HVAC and appliance wiring Prototyping and electronic projects Tell us your coil wire requirement — we’ll build the rest.
No minimum order. No standard-only limitations. Just custom coils, built your way.
