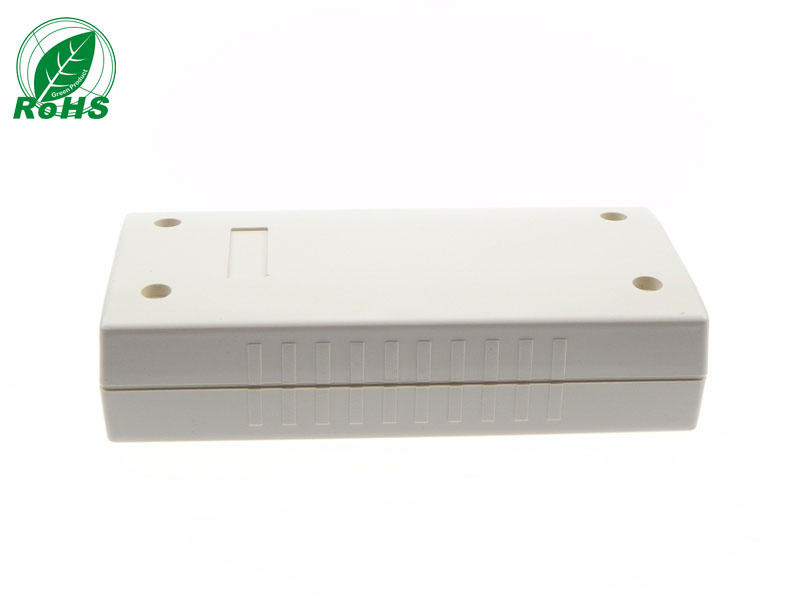

The XDI02-18 is a compact plastic enclosure designed for small electronic devices, power supplies, and control modules. It features a removable front panel and removable end panels on both sides for cable entry or connector mounting. The internal mounting bosses and screw-fixed cover make it suitable for PCB assembly and small control components.
Note: Dimensions, color, cutouts, and internal layout are all customizable upon request.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | XDI02-18 |

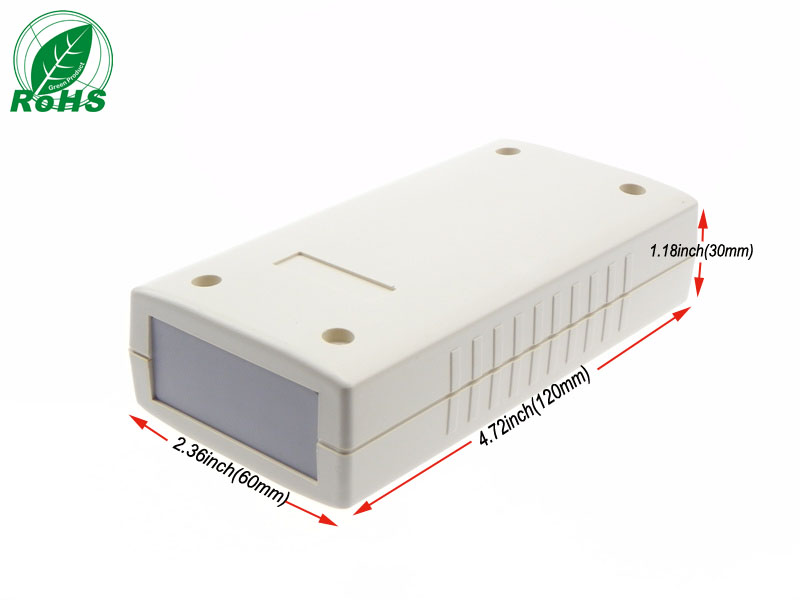

| Dimensions | 120 × 60 × 30 mm (4.72 × 2.36 × 1.18 inch) |
| Net Weight | 65g |
| Material | ABS Plastic (RoHS compliant) |
| Color | Light Gray body + gray panels (custom colors available) |
| Cover Type | Screw-fixed cover |
| Front Panel | Removable panel (not transparent) |

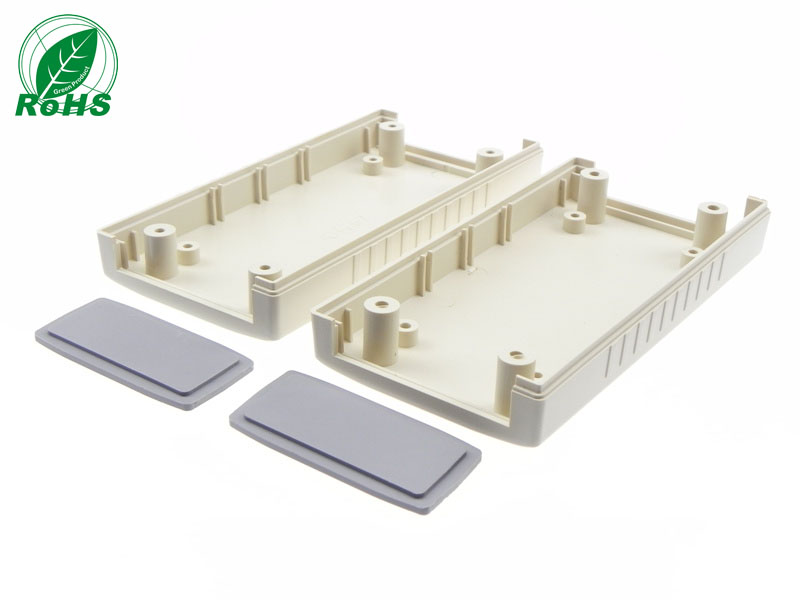

| End Panels | Removable panels on both sides for cable entry |
| Internal Structure | PCB mounting bosses |
| Protection | Standard indoor protection |
| Customization | Yes — color, cutouts, logo, size available |
Key Features
- Removable front and end panels for flexible cable entry and connector mounting
- Compact and lightweight — 65g
- Internal PCB mounting bosses for assembly
- Screw-fixed cover for secure closure
- Durable ABS plastic construction
- RoHS compliant
Typical Applications
- Small electronic devices
- Power supply and adapter housings
- Control modules and drivers
- Sensor enclosures
- Instrument cases
- DIY electronics projects
Customization Options
- Surface color
- Logo printing / silk screening
- Cutouts for connectors, switches, and cable entries
- Internal PCB mounting points
- Custom panel openings and sizes
Ordering Information
Available in volume stock. Sample orders and small-batch customization are both welcome. If you have a design drawing or physical sample, we can match it directly.
For other custom requirements, contact our online customer service or reach out via WhatsApp.
