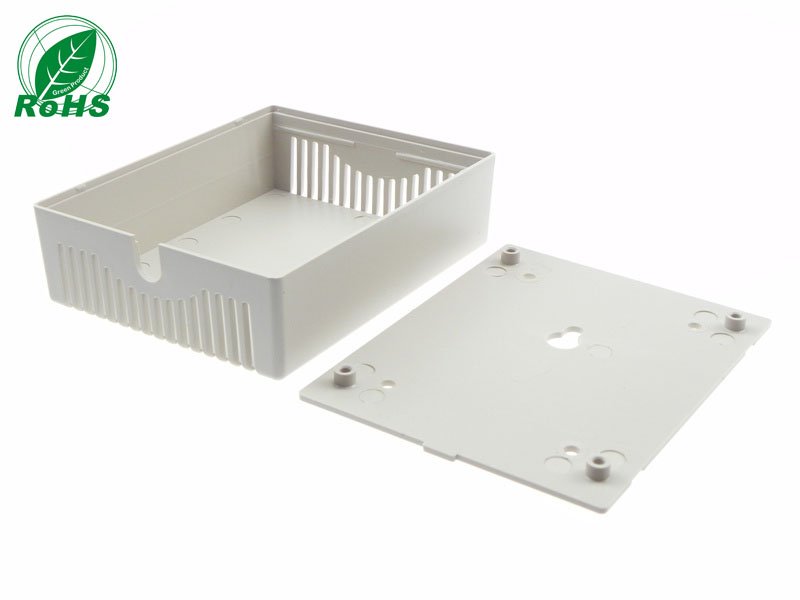

The XDI02-19 is a compact plastic enclosure designed for small electronic devices, sensors, and control modules. It features side ventilation slots for airflow, a center hole on the top surface for cable entry or sensor mounting, and four screw bosses on the base for PCB assembly. The screw-fixed cover ensures secure closure.
Note: Dimensions, color, cutouts, and internal layout are all customizable upon request.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | XDI02-19 |

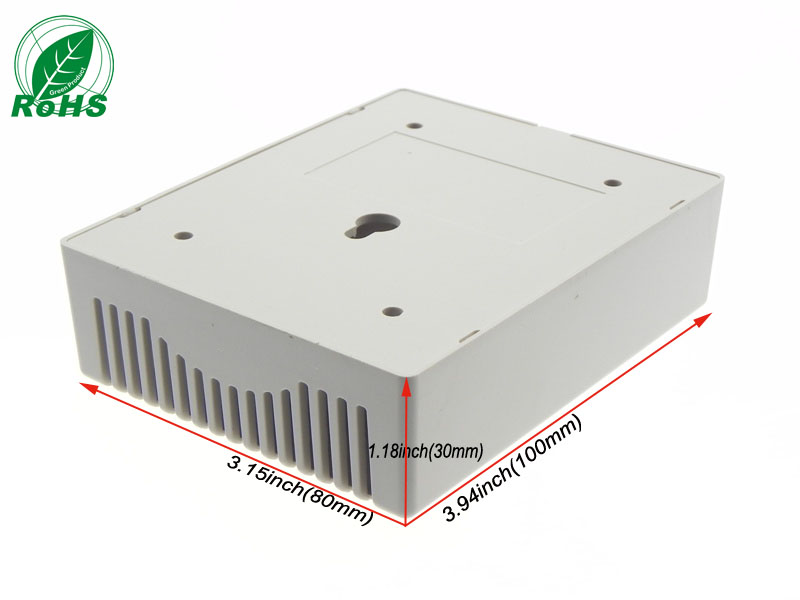

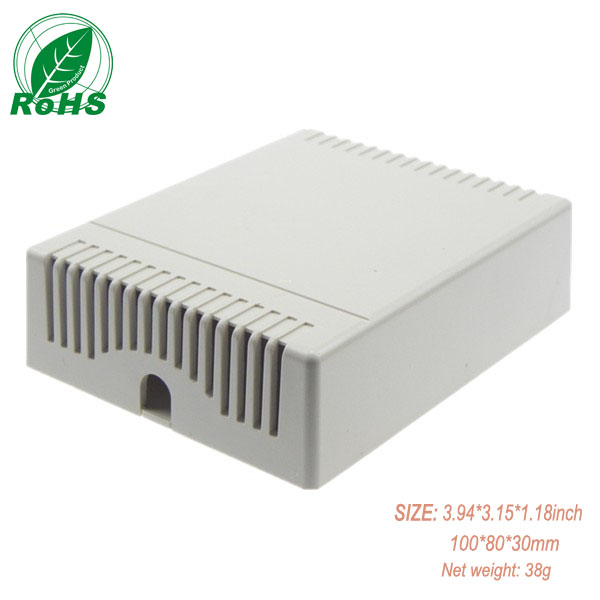

| Dimensions | 100 × 80 × 30 mm (3.94 × 3.15 × 1.18 inch) |
| Material | ABS Plastic (RoHS compliant) |
| Color | Light Gray (custom colors available) |
| Cover Type | Screw-fixed cover |
| Ventilation | Side ventilation slots |
| Top Opening | Center hole for cable entry or sensor mounting |
| Internal Structure | 4 screw bosses for PCB mounting |
| Protection | Limited dust and moisture protection (ventilated design) |
| Customization | Yes — color, cutouts, logo, size available |
Key Features
- Side ventilation slots for heat dissipation
- Center hole on top for cable entry or sensor mounting
- Four internal screw bosses for PCB assembly
- Screw-fixed cover for secure closure
- Compact and lightweight
- Durable ABS plastic construction
- RoHS compliant
Important Note on Protection
This enclosure features ventilation slots, which allow airflow but mean it is not fully sealed. It provides limited protection against dust and moisture — suitable for environments where airflow is needed and direct water exposure is not a concern. For fully sealed IP65/IP67 alternatives, please contact us.
Typical Applications
- Sensor housings
- Small electronic devices
- Control modules and drivers
- Power supply housings
- Instrument cases
- DIY electronics projects
Customization Options
- Surface color
- Logo printing / silk screening
- Cutouts for connectors, switches, and cable entries
- Internal PCB mounting points
- Custom sizes and opening positions
Ordering Information
Available in volume stock. Sample orders and small-batch customization are both welcome. If you have a design drawing or physical sample, we can match it directly.
For other custom requirements, contact our online customer service or reach out via WhatsApp.
