The XDH03 series offers four handheld enclosure designs, each tailored to different instrument layouts and user interaction styles — from benchtop reading to handheld operation.

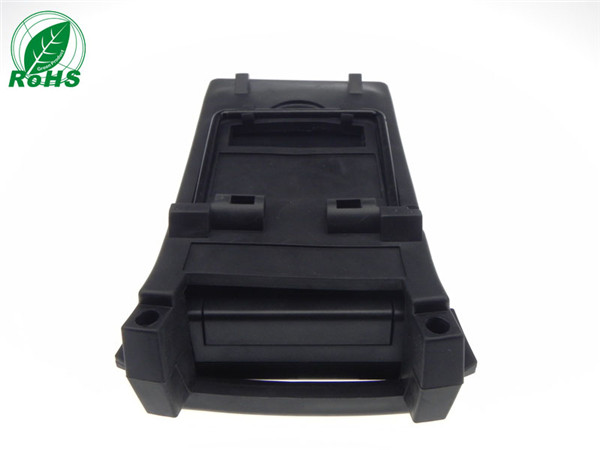

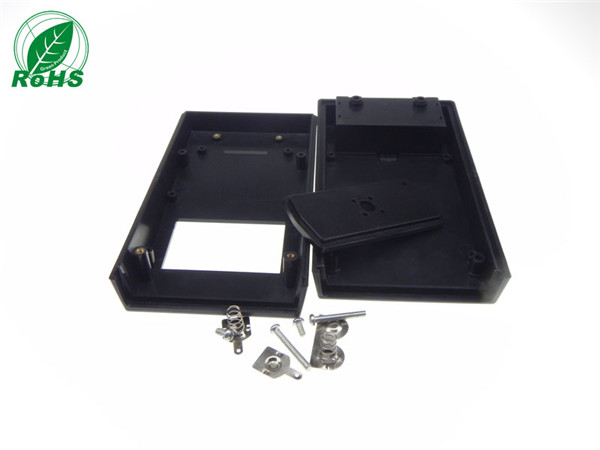

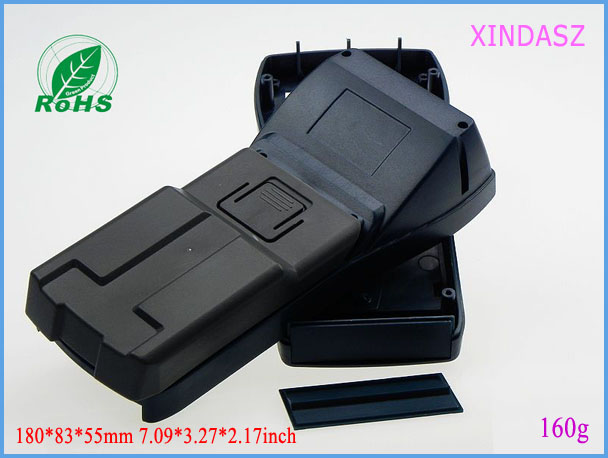

XDH03-2 — Angled Display Handheld Enclosure

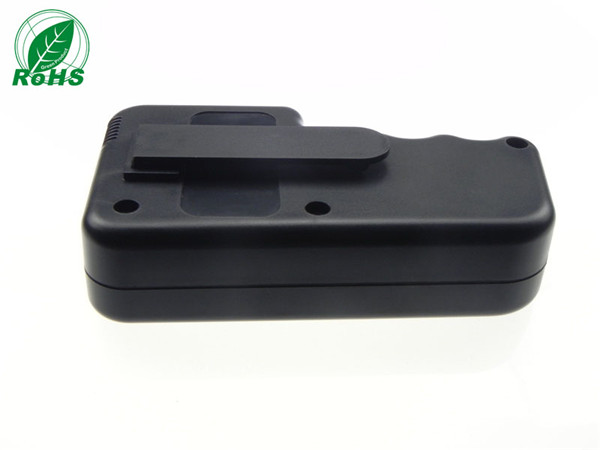

This model features a raised display bezel on the top surface, creating a natural screen angle that remains readable even when placed on a flat table. The rear side includes mounting points for detachable clips or belt hooks.
| Feature | Detail |
|---|---|
| Display Angle | Raised bezel — tilts screen upward when placed on flat surface |
| Rear Feature | Mounting points for clips, belt hooks, or removable brackets |
| Best For | Portable readers, benchtop instruments, clip-on devices |

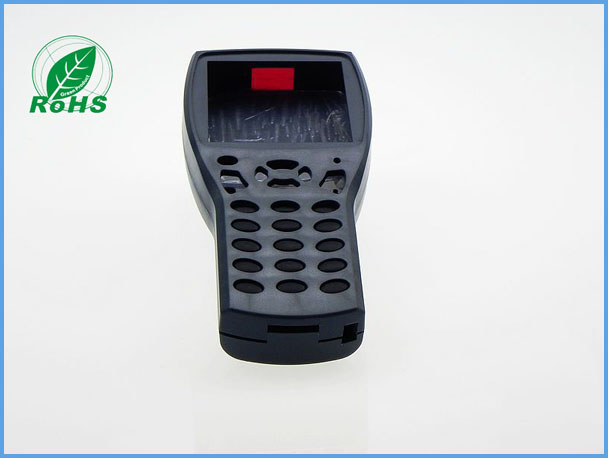

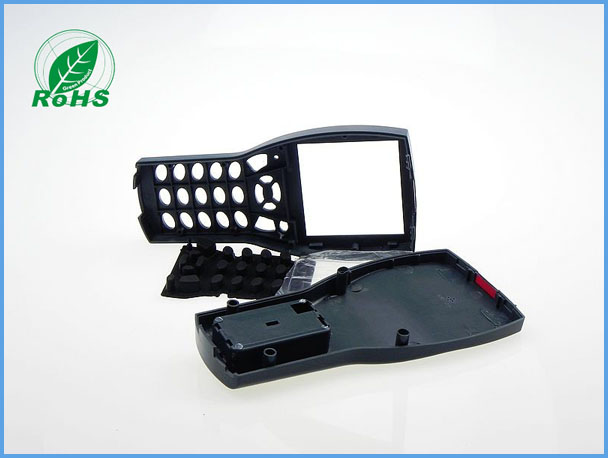

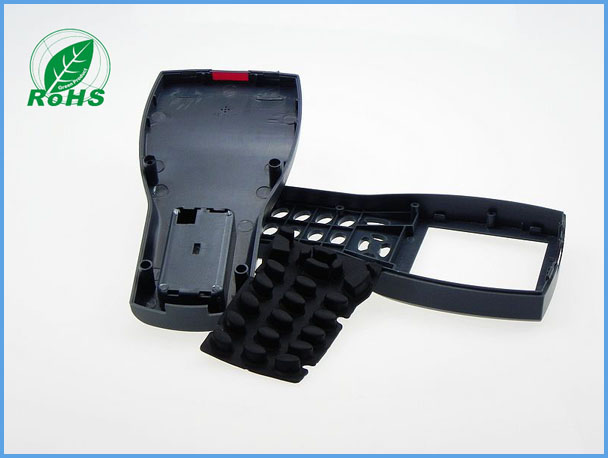

XDH03-3 — Flat Body Standard Handheld Enclosure
A clean, flat-profile enclosure with a flat back and flat front — no angled surfaces, no raised sections. The straightforward design makes it suitable for a wide range of handheld devices. A built-in sliding cover on the top allows an antenna to be extended when needed and retracted when not in use, making it ideal for portable receivers, wireless instruments, and handheld transceivers.
| Feature | Detail |
|---|---|
| Front Surface | Flat — easy for button and display layout |
| Rear Surface | Flat — stable placement on any surface |
| Best For | Universal handheld instruments, remote controls, general-purpose devices |

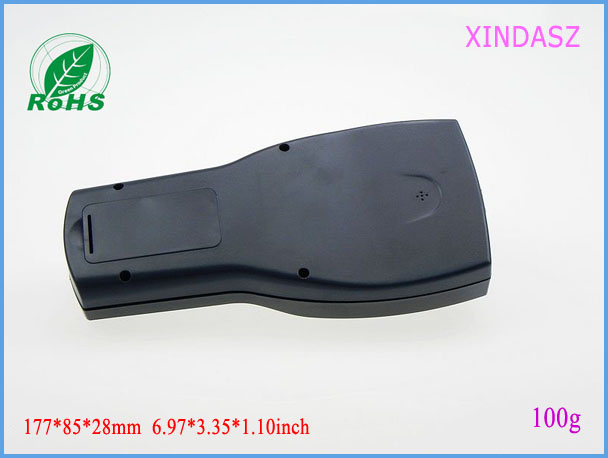

XDH03-15 — Modern Ergonomic Handheld Enclosure
This model features a sleek, modern design with subtle waistline contours on both sides — slightly recessed grip areas that fit the palm naturally. The shape is similar to a student-style calculator, offering comfortable handling for extended use, while its clean lines and smooth surfaces give it a contemporary look. The recessed side grips not only improve comfort but also make the device easier to hold securely during operation.
| Feature | Detail |
|---|---|
| Grip Design | Waistline contours on both sides — natural palm fit |
| Overall Shape | Calculator-style ergonomic form |
| Best For | Handheld test equipment, control panels, devices requiring prolonged handling |

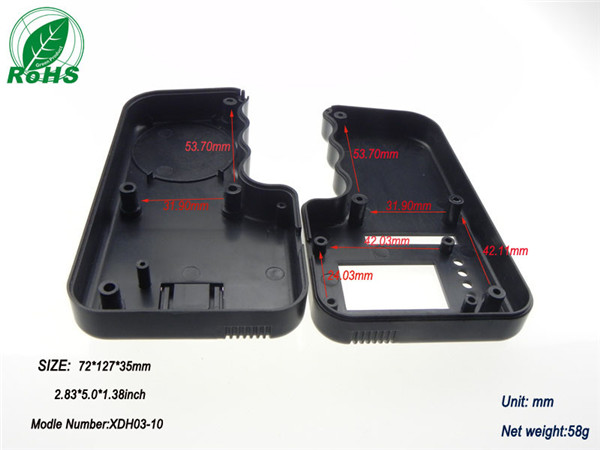

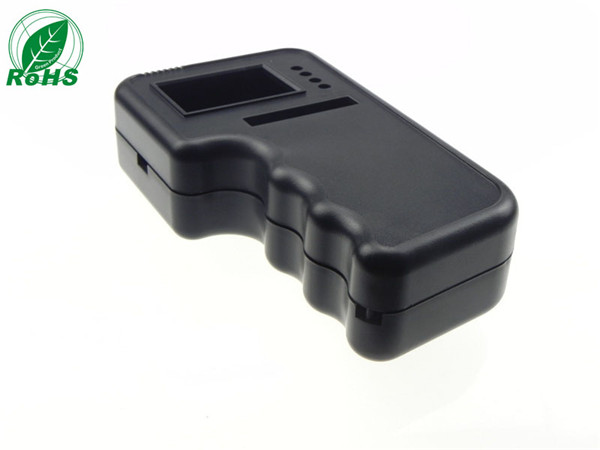

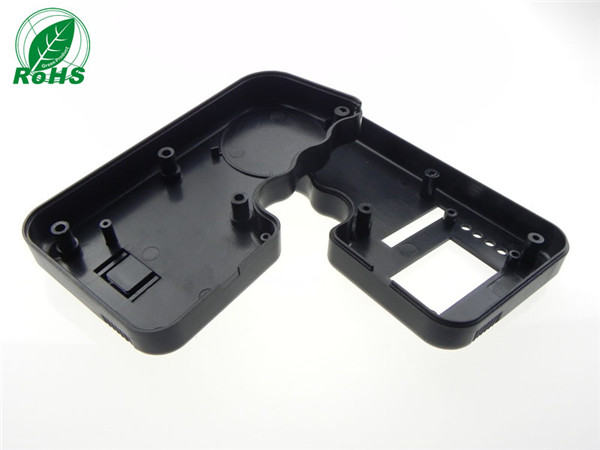

XDH03-10 — Side-Grip Ergonomic Handheld Enclosure
This model features a single-handed grip offset to one side of the main body, rather than centered. The grip is shaped to fit the palm naturally, making it suitable for one-handed operation with thumb control.
| Feature | Detail |
|---|---|
| Grip Position | Offset grip — designed for one-handed use |
| Control Layout | Thumb-friendly button placement on the front panel |
| Best For | Remote controllers, handheld scanners, single-hand operated devices |

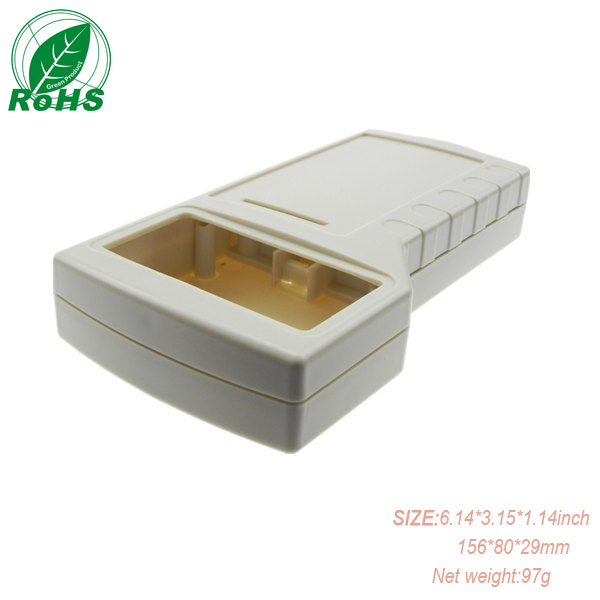

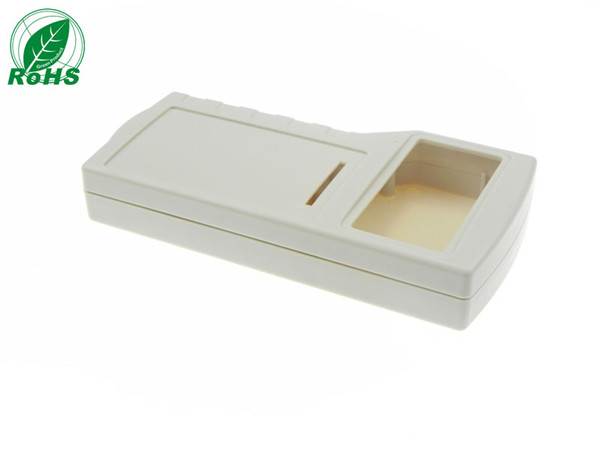

XDH03-12 — Offset-Grip Ergonomic Handheld Enclosure
This model features an offset-grip design — one side is wider for the display/control area, while the other side narrows for single-hand holding. The recessed side surface naturally positions the fingers, providing a comfortable grip without traditional finger grooves. It combines the ergonomic handling of the XDH03-15 with the one-handed operation of the XDH03-10.
| Parameter | Detail |
|---|---|

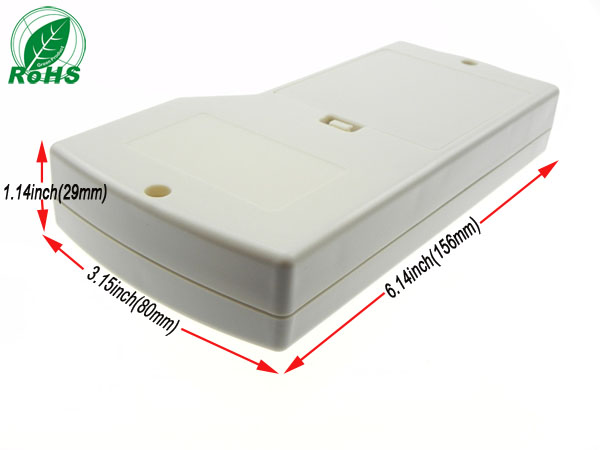

| Dimensions | 156 × 80 × 29 mm (6.14 × 3.15 × 1.14 inch) |
| Net Weight | 97g |
| Material | ABS Plastic (RoHS compliant) |
| Grip Design | Offset grip — one side narrows for single-hand use |
| Finger Placement | Recessed surface for natural finger rest |
| Mounting | Screw mounting, with PCB standoffs |
| Customization | Yes — color, cutouts, logo, material available upon request |
Key Features
- Offset grip — natural one-handed operation
- Recessed side surface — reduces finger pressure during extended use
- Compact size — 156 × 80 × 29 mm, lightweight at 97g
- ABS construction — durable and RoHS compliant
- Ready for PCB mounting and customization
Quick Comparison
| Feature | XDH03-2 | XDH03-3 | XDH03-15 | XDH03-10 |
|---|---|---|---|---|
| Display Angle | Raised, tilt-up | Flat | Flat | Flat |
| Rear Feature | Clip mounting points | Flat | Flat | Flat |
| Grip Design | Standard | Standard | Waistline contours | Side-mounted handle |
| Best For | Benchtop reading | Universal | Prolonged handling | One-handed operation |
Common Features (All Models)
- ABS plastic construction — durable and lightweight
- Customizable appearance — color, logo, cutouts
- PCB mounting points — ready for assembly
- Suitable for handheld instruments, remote controls, test equipment, and DIY projects
Customization Options (All Models)
- Surface color
- Logo printing / silk screening
- Cutouts for buttons, displays, connectors, and sensors
- Internal mounting points for PCBs and components
Ordering Information
Available in volume stock. Sample orders and small-batch customization are both welcome. If you have a design drawing or physical sample, we can match it directly.
For other custom requirements not listed here, feel free to contact our online customer service or reach out via WhatsApp.
