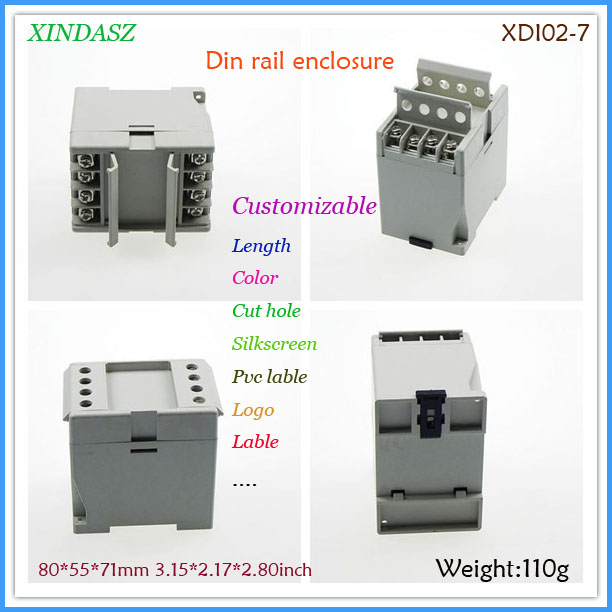

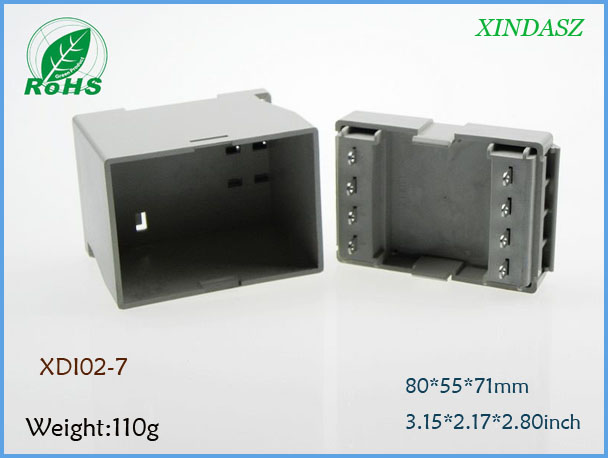

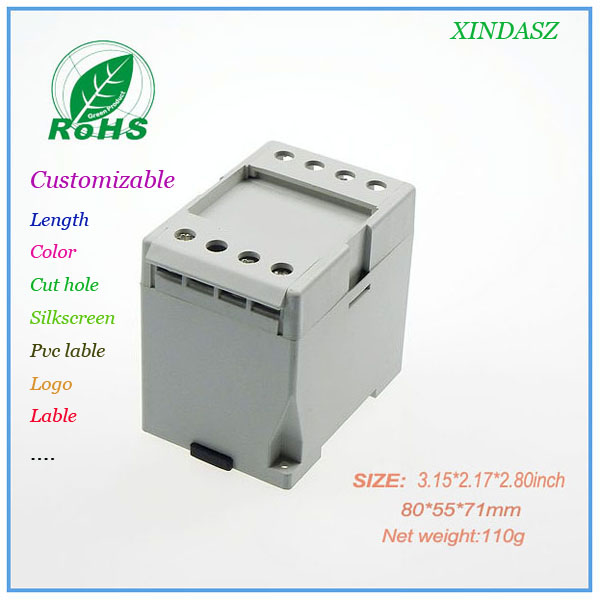

The XDI02-7 is a compact Din rail enclosure designed for electrical terminal block and wiring applications. It features dual rows of screw terminals (4 per side), a snap-fit cover, and a Din rail mounting base for easy installation in control cabinets and distribution panels. The internal space and terminal layout make it suitable for signal distribution, relay connections, and control wiring.
Note: Dimensions, color, cutouts, and internal layout are all customizable upon request.
Enclosure Technical Specifications
| Parameter | Specification |
|---|---|
| Model | XDI02-7 |
| Dimensions | 80 × 55 × 71 mm (3.15 × 2.17 × 2.80 inch) |
| Net Weight | 110g |
| Material | ABS Plastic (RoHS compliant) |
| Color | Gray (custom colors available) |
| Mounting | Din rail mount |
| Terminal Blocks | Dual rows, 4 screw terminals per side |
| Cover Type | Snap-fit cover |
| Protection | Standard indoor protection |
| Customization | Yes — length, color, cutouts, logo, silk screen, PVC label available |
Key Features
- Din rail mount for easy installation in control cabinets
- Dual rows of screw terminals (4 per side) for multi-wire connections
- Snap-fit cover for quick access and secure closure
- Compact size — 80 × 55 × 71 mm, 110g
- Durable ABS plastic construction
- RoHS compliant
Typical Applications
- Electrical terminal blocks and junctions
- Control cabinet and distribution panel wiring
- Signal distribution and relay connections
- Industrial control and automation
- Power supply and driver housing
- Instrument and equipment wiring
Customization Options
- Length
- Color
- Cut holes
- Silk screen printing
- PVC label
- Logo
- Custom labeling
Ordering Information
Available in volume stock. Sample orders and small-batch customization are both welcome. If you have a design drawing or physical sample, we can match it directly.
For other custom requirements, contact our online customer service or reach out via WhatsApp.
