Drones and robotics demand cables that are not only lightweight and compact but also capable of handling constant motion, tight bends, and high-frequency data transmission. In these applications, signal integrity and flexibility are mission-critical.
We design and manufacture custom cables for drones and robotic systems — built to withstand the mechanical stresses of flight, movement, and continuous operation.
Core Capabilities
Parameter
What We Offer
Weight
Ultra-lightweight designs for flight-critical applications
Flex Life
10+ million cycles for continuous motion and folding mechanisms
Bend Radius
Tight bend radius (5x OD or less) for space-constrained designs
Temperature Range
-40°C to +125°C
Shielding
Braided, foil, or combination — for EMI protection in dense electronic environments

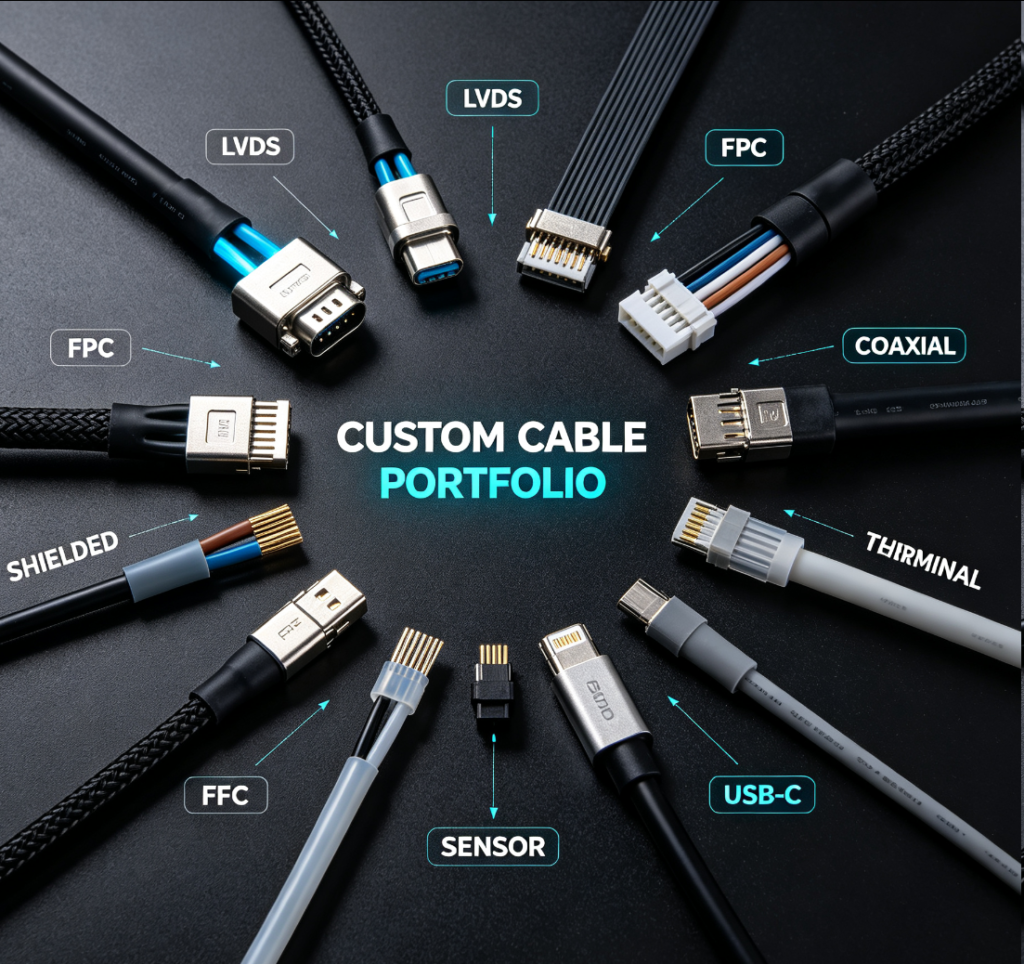

Cable Types
FPC, FFC, micro-coaxial, twisted pair, hybrid (power + signal + data), and more
Customization
Length, connectors, shielding, jacket material, and configuration — fully customizable
Drone Applications We Support
Application
Cable Type / Requirement
Camera Gimbals
Ultra-thin FPC, high-flex cables, micro-coaxial — for continuous pan/tilt motion
VTX / Video Transmission
Micro-coaxial, shielded cables — for high-frequency video signal transmission
Flight Controllers
FPC, wire harness — for sensor and GPS module connections
ESC / Motor Connections
High-flex wires — for motor phase connections
Battery / Power Distribution
Flexible high-current cables — for battery-to-ESC and power distribution
GPS / Telemetry
Shielded cables — for GPS, compass, and radio telemetry modules
Payload / Sensor
FPC, data cables — for thermal, multispectral, LIDAR, and other payload sensors
Key Drone Applications
First-person view (FPV) drones
Aerial photography (professional drones)
Delivery / logistics drones
Inspection / surveillance drones
Agricultural drones
Robotics Applications We Support
Application
Cable Type / Requirement
Robotic Arms
High-flex power + signal + data cables — for continuous joint motion
End Effectors / Grippers
Flexible cables with integrated feedback lines
Base Stations / Controllers
Wire harnesses — for main power, Ethernet, and control signals
Autonomous Mobile Robots (AMRs)
Hybrid cables (power + signal + data), drag chain-rated
Cobots
High-flex, safety-rated cables with continuous flex capability
Sensor / Vision Systems
Shielded cables, camera cables — for LIDAR, stereo vision, 3D sensing
Actuator / Drive Systems
Flexible power cables — for servo motors and linear actuators
Key Robotics Applications
Industrial robots
Collaborative robots (cobots)
Autonomous mobile robots (AMRs)
AGVs (automated guided vehicles)
Robotic inspection systems
Why Choose Us for Drones & Robotics?
Lightweight construction: Minimizes added weight for drones and moving systems
High flex life: Designed for continuous motion without signal degradation
Signal integrity: Proper shielding and impedance control for high-frequency data
Full customization: Length, connectors, shielding, materials — all adjustable
Quality tested: 100% electrical and continuity testing before shipment
Experience: 30+ years in custom cable manufacturing
Lightweight. Flexible. Reliable. Built to move — and keep moving.
Tell us your application — we’ll design the cable that fits
1. FFC / FPC Flexible Flat Cables
Model
Brand
Key Specifications
Features
Typical Application
686624200001
Würth Elektronik
24P, 1.0mm pitch, 200mm, Type 1 (Same Side)
PET insulation, 105°C, 1A, 60V, unshielded
General drone/robot internal connections
STC-FPV-002
STC Cable
Ultra-slim HDMI FPV FFC
Ultra-thin design, 2-year warranty
FPV drone video transmission
H107D+-12
Hubsan
Replacement FFC transmission cable
OEM replacement for H107D+ series
Hubsan H107D+ drone
3319 Series
3M
28AWG, 1.27mm pitch, 4-64 conductors
100 million flex cycles, 300V
High-flex robot applications
2. Micro-Coaxial / LVDS Cables
Model
Brand
Key Specifications
Features
Typical Application
DF56-26P-0.3SD
Hirose
0.3mm pitch, 26P, 42-46 AWG
Ultra-thin coaxial, -35~85°C
Drone camera connection
DF56-30P-0.3SD
Hirose
0.3mm pitch, 30P, 42-46 AWG
Ultra-thin coaxial
Drone camera connection
DF56-40P-0.3SD
Hirose
0.3mm pitch, 40P, 42-46 AWG
Ultra-thin coaxial
Drone camera connection
DF56-50P-0.3SD
Hirose
0.3mm pitch, 50P, 42-46 AWG
Ultra-thin coaxial
Drone camera connection
DF81 Series
Hirose
0.4mm pitch, 30/40/50P, 34-46 AWG
LVDS coaxial cable with metal cover and lock
Drone display / camera modules
CC-1560
UCOAX
36-46 AWG micro coaxial
Customizable connectors and length
AR/VR / Drone cables
3. Robot / Motion Control Cables
Model / Series
Brand
Key Specifications
Features
Typical Application
CF9 Control Cable
Igus chainflex®
Multi-conductor, unshielded, TPE jacket
300V, ±90° torsion/m
Robot control signals
CF30 Motor Power Cable
Igus chainflex®
Multi-conductor, unshielded, PVC jacket
1000V, ±90° torsion/m
Robot motor power
CF34 Motor Power Cable
Igus chainflex®
Multi-conductor, unshielded, TPE jacket
1000V, ±90° torsion/m
Robot motor power
CFROBOT6 Motor Power Cable
Igus chainflex®
Multi-conductor, unshielded, PUR jacket
1000V, ±180° torsion/m
Multi-axis robots
CFROBOT4 Servo Cable
Igus chainflex®
Shielded, PUR jacket
30V, ±180° torsion/m
Servo motor feedback
CFROBOT9 Hybrid Cable
Igus chainflex®
Shielded, PUR jacket
300V, ±180° torsion/m
Robot hybrid (power + signal)
Kaweflex 6110 Series
TKD
High-flex control cable
Up to 5 million flex cycles
Drag chain / robot dynamic applications
Quick Selection Guide
Application
Recommended Model
Selection Reason
Drone Gimbal / Camera Connection
DF56 / DF81 Series
Micro-coaxial, space-saving, ideal for high-res transmission
Drone FPV Video Transmission
STC-FPV-002
Ultra-slim HDMI FFC, FPV-dedicated design
Multi-Axis Robot Power / Control
CFROBOT6 / CFROBOT9
Supports ±180° torsion, high durability
High-Flex Robot Control
3M 3319 Series / Kaweflex 6110
High flex life (100M / 5M cycles)
Robot Hybrid Cable
CFROBOT9 Hybrid
Power + signal + data in one cable
General Drone Internal Connections
Würth 686624200001
Standard FFC, easy to customize, multi-vendor supply
Antennas for Drones & Robotics — Model Table
Model
Brand
Frequency Range
Gain
Connector Type
Cable / Line Type
Key Features
Typical Application
KH1C-01-Y
Kinghelm
890-960 / 1710-1990 MHz
—
SMA
RG174, 3m
50Ω impedance, -40~80°C
UAV, remote control vehicles, wireless monitoring, GPS tracking
