XDI02-29 — Plastic DIN Enclosure with Window and Red Locking

waterproof Connector

The XDI02-29 is a compact white plastic DIN rail enclosure designed for electrical and industrial control applications. It features a transparent window on the top surface for visual inspection, a red locking tab for secure closure, and internal mounting posts for PCB assembly. The stepped profile provides additional space for larger components.

Note: Dimensions, color, cutouts, and internal layout are all customizable upon request.

Technical Specifications

Parameter	Specification
Model	XDI02-29

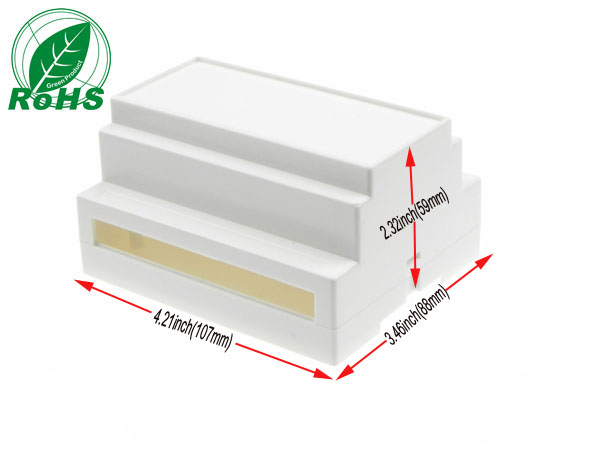

Dimensions	88 × 107 × 59 mm (3.46 × 4.21 × 2.32 inch)
Net Weight	80g
Material	ABS Plastic (RoHS compliant)
Color	White body + red locking tab (custom colors available)
Mounting	DIN rail mount
Locking	Red locking tab
Window	Transparent window on top
Cover Type	Snap-fit cover

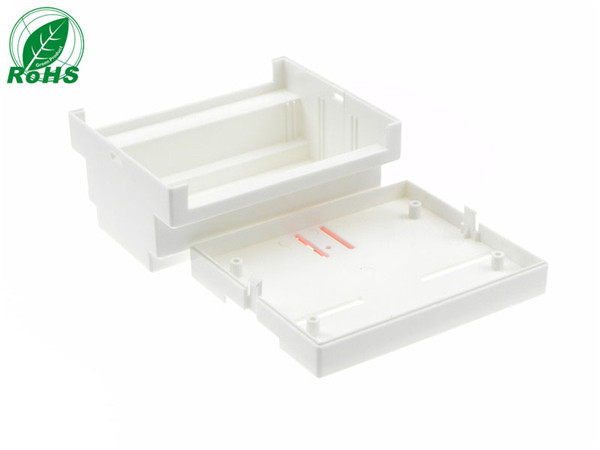

Internal Structure	PCB mounting posts
Protection	Standard indoor protection
Customization	Yes — color, cutouts, logo, size available

Key Features

Durable ABS plastic construction
DIN rail mount for easy installation in control cabinets
Transparent window for visual inspection without opening
Red locking tab for secure closure
Stepped profile for larger components
Internal mounting posts for PCB assembly
Compact size — 88 × 107 × 59 mm, 80g
RoHS compliant

Typical Applications

DIN rail electrical enclosures
Industrial control and automation
Power supply and driver housing
PCB protection with visual access
Instrument and equipment wiring
Building automation and control panels

Customization Options

Surface color
Logo printing / silk screening
Cutouts for cable glands, connectors, and switches
Internal PCB mounting points
Custom sizes and opening positions

Ordering Information

Available in volume stock. Sample orders and small-batch customization are both welcome. If you have a design drawing or physical sample, we can match it directly.

For other custom requirements, contact our online customer service or reach out via WhatsApp.
