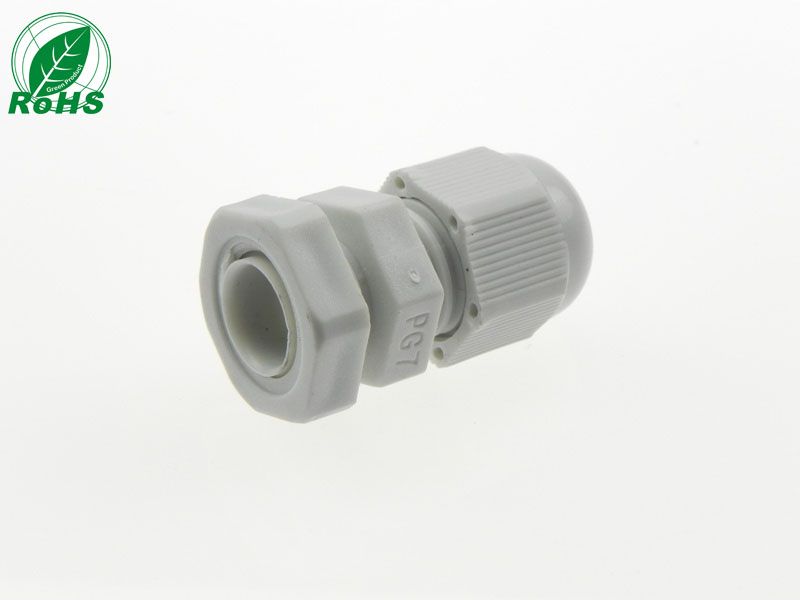

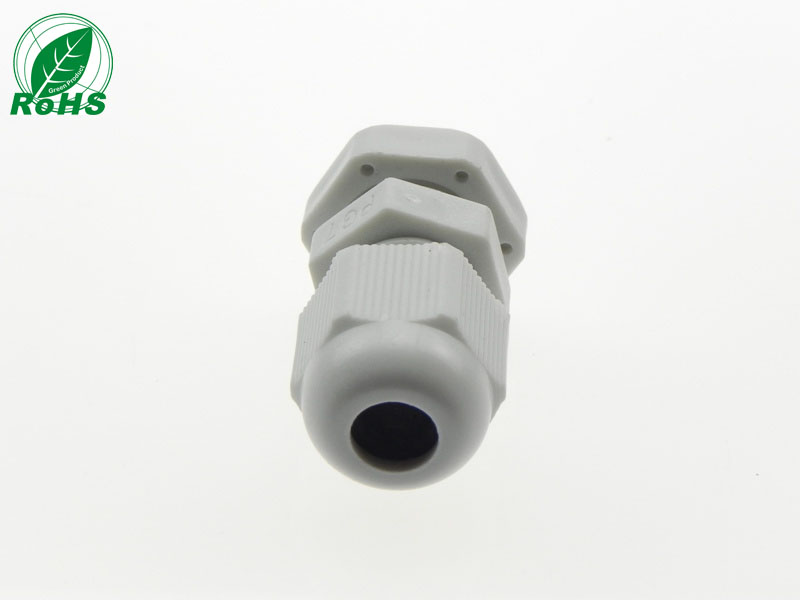

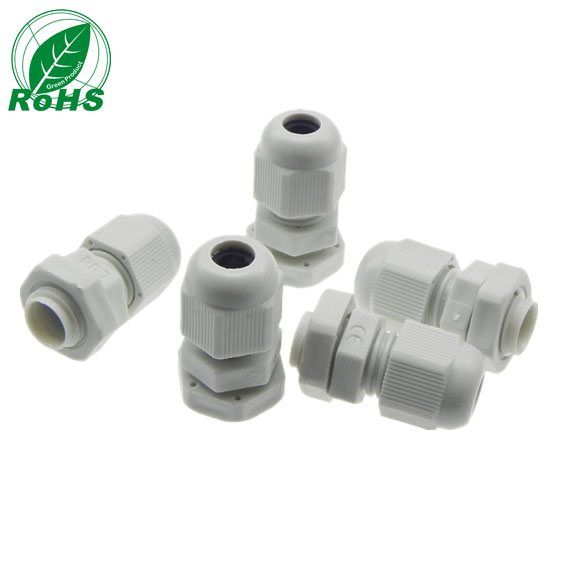

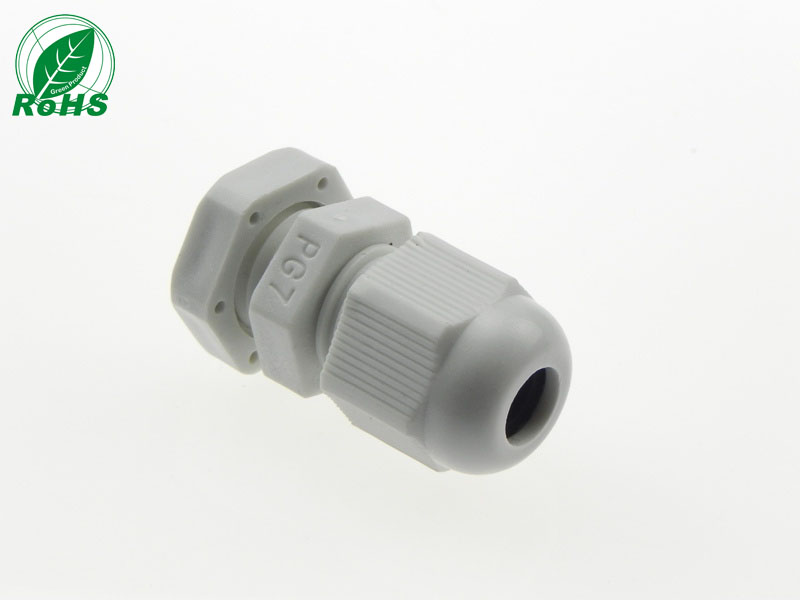

PG7 is the smallest standard size in the PG thread series, designed for waterproof sealing and strain relief of small to medium diameter cables. Below are the key specifications and installation details.
Note: Dimensions (body length, thread length, and overall size) are customizable upon request. Please contact us with your specific requirements
Technical Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Thread Type | PG7 (German Standard) | Complies with DIN 46320 |
| Cable Diameter Range | 3.0 – 6.5 mm | Common range: 3.5–6.0mm |
| Thread Outer Diameter | 12.5 mm | Reference value for panel cutout |
| Thread Length | 8 mm | Required thread length for installation |
| Ingress Protection Rating | IP65 to IP68 | Varies by model (see notes below) |
| Material | Nylon 66 (PA66) or Brass | Nylon: lightweight, self-extinguishing; Brass: higher mechanical strength |
| Sealing Material | CR / Silicone (VMQ) / EPDM | Affects temperature range and chemical resistance |
| Operating Temperature (Nylon) | -40°C to +85°C | Short-term exposure to higher temperatures possible |
| Color | Black, Gray, Off-white, etc. | Custom colors available on request |

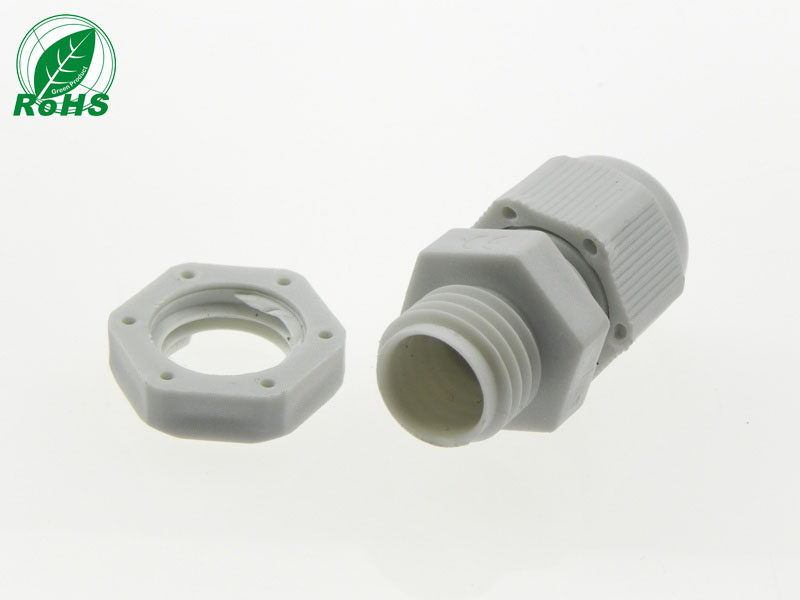

| Locknut Included | Optional | Some models include locknut and sealing washer |
| Customization | Yes | Length, thread length, and overall size can be customized. Contact us for details. |
Suggested Image Placement
| Image Type | Placement | Purpose |
|---|---|---|
| Product Photo | Top of product page | Shows overall appearance (with locknut) |

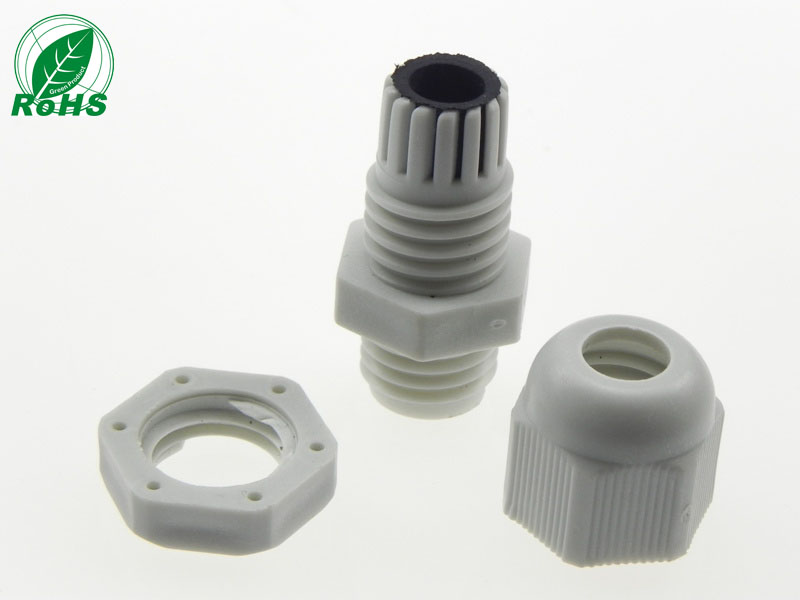

| Exploded View | Below the spec table / technical section | Shows body, locknut, and sealing ring parts |
| Installation Diagram | Application section | Shows how the gland secures cable and fits into panel cutout |
| Cable Fit Diagram | Selection guide | Shows proper cable-to-gland fit |
| Application Scene | Bottom of page / inquiry section | Outdoor enclosure, lighting, industrial equipment usage |
Installation Notes
- Verify Cable Diameter: Confirm cable OD is within 3.0–6.5mm to avoid loose or tight fit.
- IP Rating: IP68 protection requires proper tightening and intact sealing ring. Standard seal typically provides IP65.
- Material Selection: Nylon is suitable for indoor use; brass or specific rubber seals are recommended for outdoor or chemical environments.
Accessories
- Locknut
- Sealing Washer
- Earthing Ring
- Locking Nut
These accessories are available for separate purchase. Custom colors, materials, lengths, and sizes can be discussed with our factory.
