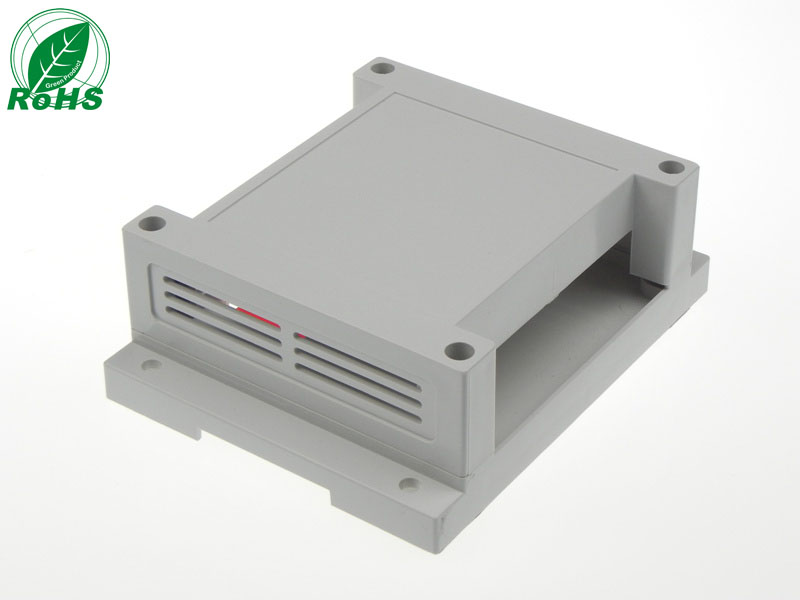

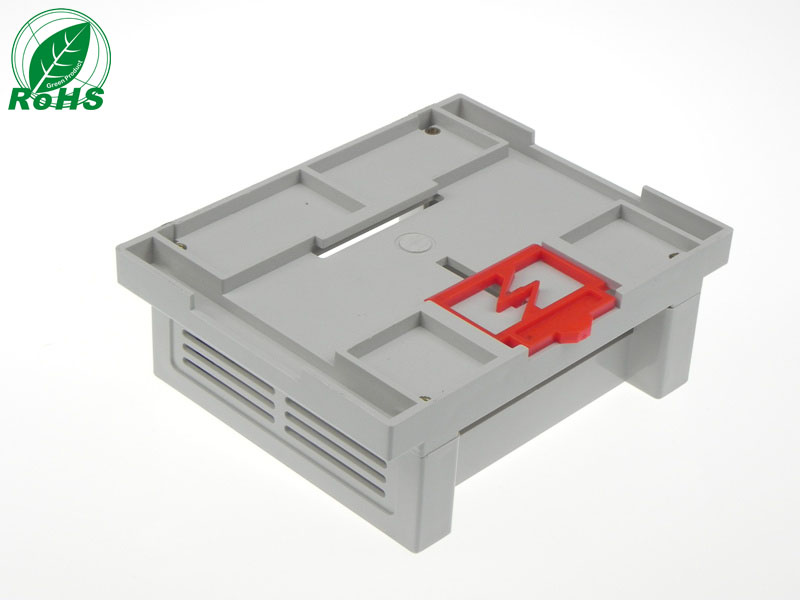

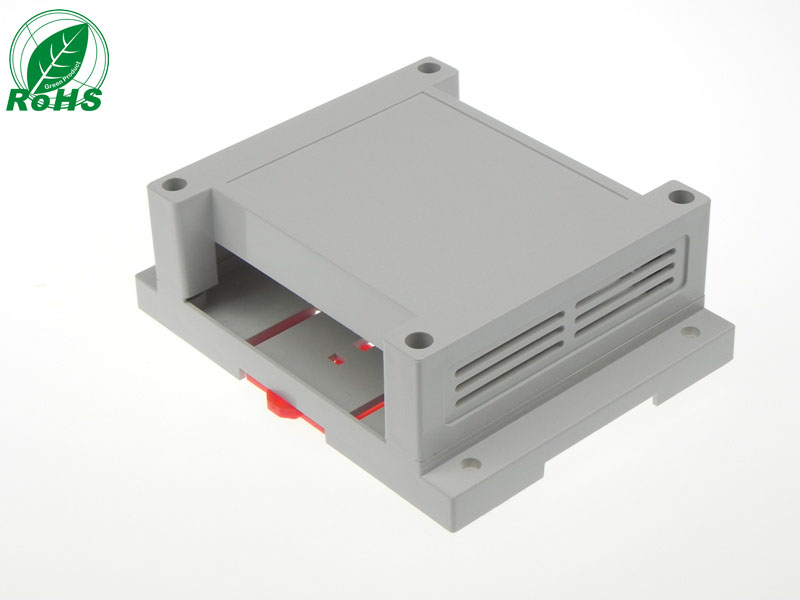

The XDI02-11 is a compact DIN rail enclosure designed for electrical and industrial control applications. It features side ventilation slots for airflow, a red locking tab for secure closure, and a screw-fixed cover with four corner screws. The internal mounting structure and DIN rail base make it suitable for PCB assembly, terminal blocks, and control modules.
Note: Dimensions, color, cutouts, and internal layout are all customizable upon request.
Rail Enclosure Technical Specifications
| Parameter | Specification |
|---|---|
| Model | XDI02-11 |
| Material | ABS Plastic (RoHS compliant) |
| Color | Gray body + red locking tab |
| Mounting | DIN rail mount |
| Ventilation | Side ventilation slots |
| Locking | Red locking tab |
| Cover Type | Screw-fixed cover (4 corner screws) |
| Protection | Limited dust and moisture protection (ventilated design) |
| Customization | Yes — color, cutouts, logo, size available |
Key Features
- DIN rail mount for easy installation in control cabinets
- Side ventilation slots for heat dissipation
- Red locking tab for secure closure
- Screw-fixed cover with 4 corner screws
- Internal mounting points for PCBs and terminal blocks
- Durable ABS plastic construction
- RoHS compliant
Important Note on Protection
This enclosure features ventilation slots, which allow airflow but mean it is not fully sealed. It provides limited protection against dust and moisture — suitable for environments where airflow is needed and direct water exposure is not a concern. For fully sealed IP65/IP67 alternatives, please contact us.
Typical Applications
- DIN rail electrical enclosures
- Industrial control and automation
- Power supply and driver housing
- PCB protection with heat dissipation
- Instrument and equipment wiring
- Building automation and control panels
Customization Options
- Surface color
- Logo printing / silk screening
- Cutouts for cable glands, connectors, and switches
- Internal PCB mounting points
- Custom sizes and opening positions
Ordering Information
Available in volume stock. Sample orders and small-batch customization are both welcome. If you have a design drawing or physical sample, we can match it directly.
For other custom requirements, contact our online customer service or reach out via WhatsApp.
