The XDI02-1 is a compact plastic enclosure designed for outdoor and industrial applications where both protection and airflow are required. The side ventilation slots allow heat to escape while the screw-fixed cover and sealed body provide limited protection against dust and moisture.
Note: Dimensions, color, cutouts, and internal layout are all customizable upon request.
Junction Box Technical Specifications
| Parameter | Specification |
|---|---|
| Model | XDI02-1 |

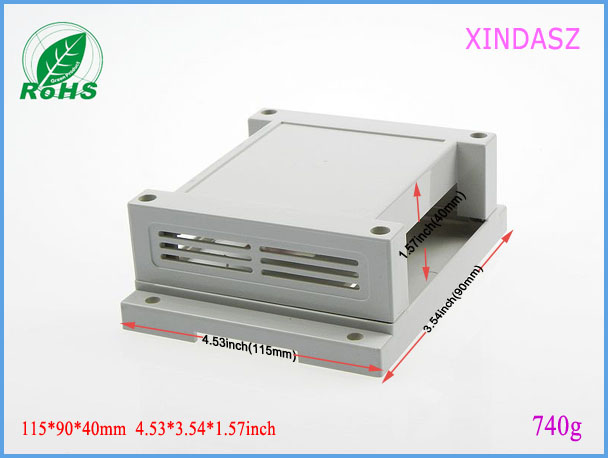

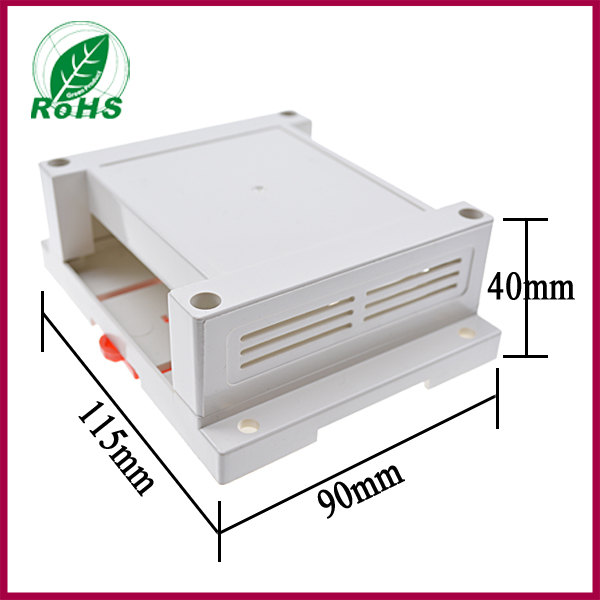

| Dimensions | 115 × 90 × 40 mm (4.53 × 3.54 × 1.57 inch) |
| Net Weight | 740g |
| Material | ABS Plastic (RoHS compliant) |
| Color | Gray (custom colors available) |
| Cover Type | Screw-fixed cover |
| Ventilation | Side ventilation slots |
| Protection | Limited dust and moisture protection (ventilated design) |
| Mounting | Wall mount / surface mount |
| Customization | Yes — cutouts, color, logo, internal layout available |
Junction Box Key Features
- Durable ABS plastic construction
- Side ventilation slots — allows heat to dissipate

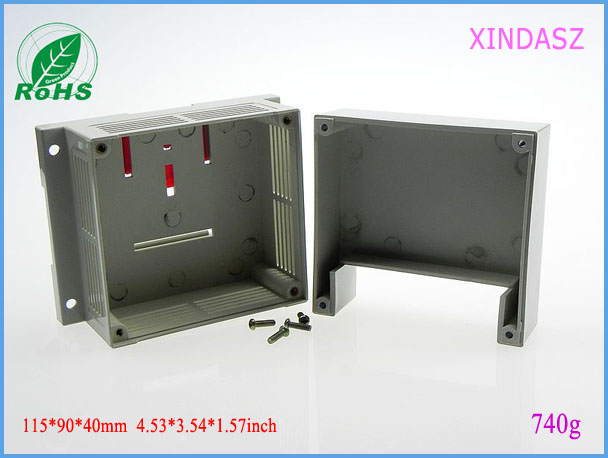

- Screw-fixed cover for easy access and service
- Multiple mounting holes for wall or surface installation
- Internal mounting points for PCBs and terminal blocks
- RoHS compliant
Important Note on Protection
This enclosure features ventilation slots, which allow airflow but also mean it is not fully sealed. It provides limited protection against dust and moisture — suitable for environments where airflow is needed and direct water exposure is not a concern.
If you need a fully sealed IP65/IP67 enclosure without ventilation, please contact us for alternative models.
Typical Applications
- Outdoor electrical junctions (sheltered)
- Industrial control and automation
- Power supply and driver housing
- PCB protection where heat dissipation is required
- LED lighting systems
- Solar and renewable energy installations

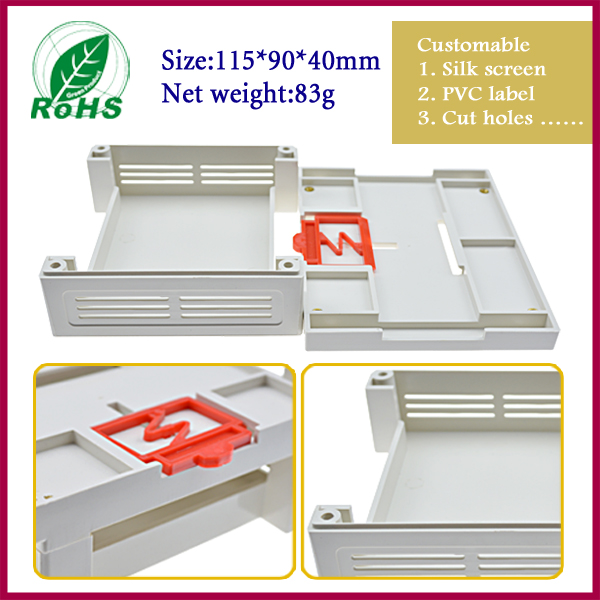

Customization Options
- Surface color
- Logo printing / silk screening
- Cutouts for cable glands, connectors, and switches
- Internal PCB mounting points
- Custom gasket and sealing options
Ordering Information
Available in volume stock. Sample orders and small-batch customization are both welcome. If you have a design drawing or physical sample, we can match it directly.
For other custom requirements, contact our online customer service or reach out via WhatsApp.
